TS2L7F26C

Active

Switchcraft Inc.

CONN RCPT FMALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 7POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2L7F26C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, Plating	Copper Alloy, Nickel
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	30 VAC

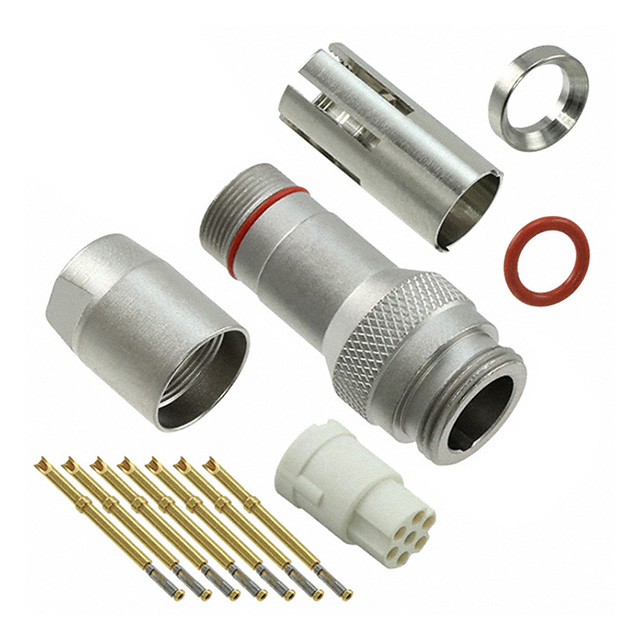

CONN RCPT FMALE 7POS GOLD CRIMP

Part	Insert Material	Termination	Number of Positions	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Connector Type	Applications	Color	Mounting Type	Backshell Material, Plating	Orientation	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shell Material	Contact Finish - Mating	Voltage Rating	Features	Primary Material	Ingress Protection	Shielding
Switchcraft Inc. TS2L7F26C	Liquid Crystal Polymer (LCP)	Crimp, Solder Cup	7	Copper Alloy	135 °C	-40 °C	Electroless Nickel	Receptacle, Female Sockets	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Silver	Free Hanging (In-Line)	Copper Alloy, Nickel	Keyed	5.49 mm	4.57 mm	0.18 in	0.216 in	Copper Alloy	Gold	30 VAC	Backshell	Metal	IP66, IP67, IP68	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
