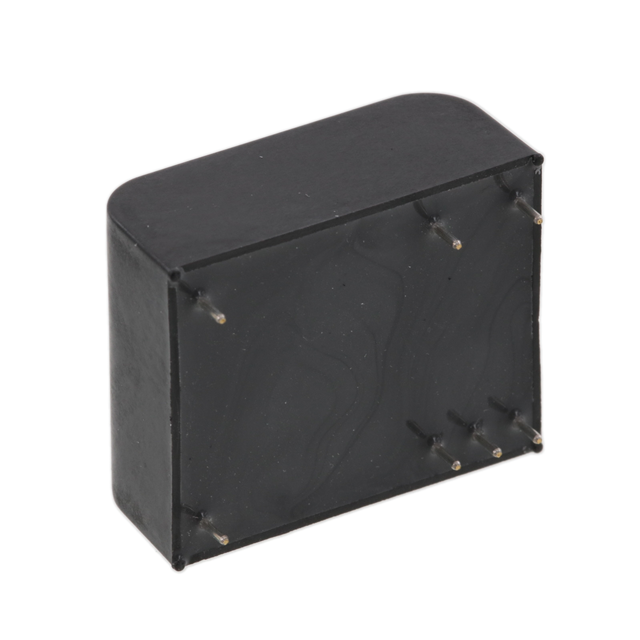

BPWX 2-08-50
ActiveCita Technologies, LLC.
AC/DC CONVERTER 8V 5V 3.3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPWX 2-08-50
ActiveCita Technologies, LLC.
AC/DC CONVERTER 8V 5V 3.3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BPWX 2-08-50 | BPWX 2 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CB, cURus | CB, cURus |
| Current - Output (Max) | 250 mA | 250 mA |
| Current - Output (Max) | 250 mA | 70 - 250 mA |
| Efficiency | 70 % | 70 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 1 - 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7-DIP Module | 7-DIP Module |
| Power (Watts) | 3.3 W | 1.5 - 3.3 W |
| Size / Dimension [x] | 1.35 " | 1.35 " |
| Size / Dimension [x] | 34.2 mm | 34.2 mm |
| Size / Dimension [y] | 28.4 mm | 28.4 mm |
| Size / Dimension [y] | 1.12 in | 1.12 in |
| Size / Dimension [z] | 14.8 mm | 14.8 mm |
| Size / Dimension [z] | 0.58 " | 0.58 " |
| Type | Enclosed | Enclosed |
| Voltage - Input [Max] | 308 VAC | 308 VAC |
| Voltage - Input [Min] | 90 VAC | 90 VAC |
| Voltage - Output 1 | 8 V | 8 - 24 V |
BPWX 2 Series
DIP,34.2X28.4MM ISOLATED POWER MODULES ROHS
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Output 1 | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Package / Case | Type | Approval Agency | Current - Output (Max) | Current - Output (Max) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cita Technologies, LLC. BPWX 2-14-00 | Through Hole | 85 °C | -40 °C | ITE (Commercial) | 28.4 mm | 1.35 " | 1.12 in | 14.8 mm | 0.58 " | 34.2 mm | 14 V | 70 % | 90 VAC | 308 VAC | 1 | 7-DIP Module | Enclosed | CB, cURus | |||
Cita Technologies, LLC. BPWX 2-08-50 | Through Hole | 85 °C | -40 °C | ITE (Commercial) | 28.4 mm | 1.35 " | 1.12 in | 14.8 mm | 0.58 " | 34.2 mm | 8 V | 70 % | 90 VAC | 308 VAC | 2 | 7-DIP Module | Enclosed | CB, cURus | 250 mA | 250 mA | 3.3 W |
Cita Technologies, LLC. BPWX 2-14-50 | Through Hole | 85 °C | -40 °C | ITE (Commercial) | 28.4 mm | 1.35 " | 1.12 in | 14.8 mm | 0.58 " | 34.2 mm | 14 V | 70 % | 90 VAC | 308 VAC | 2 | 7-DIP Module | Enclosed | CB, cURus | 83 mA, 143 mA | 1.9 W | |
Cita Technologies, LLC. BPWX 2-24-00 | Through Hole | 85 °C | -40 °C | ITE (Commercial) | 28.4 mm | 1.35 " | 1.12 in | 14.8 mm | 0.58 " | 34.2 mm | 24 V | 70 % | 90 VAC | 308 VAC | 1 | 7-DIP Module | Enclosed | CB, cURus | |||
Cita Technologies, LLC. BPWX 2-08-00 | Through Hole | 85 °C | -40 °C | ITE (Commercial) | 28.4 mm | 1.35 " | 1.12 in | 14.8 mm | 0.58 " | 34.2 mm | 8 V | 70 % | 90 VAC | 308 VAC | 1 | 7-DIP Module | Enclosed | CB, cURus | |||
Cita Technologies, LLC. BPWX 2-14-33 | Through Hole | 85 °C | -40 °C | ITE (Commercial) | 28.4 mm | 1.35 " | 1.12 in | 14.8 mm | 0.58 " | 34.2 mm | 14 V | 70 % | 90 VAC | 308 VAC | 2 | 7-DIP Module | Enclosed | CB, cURus | 70 mA, 143 mA | 1.5 W | |
Cita Technologies, LLC. BPWX 2-08-33 | Through Hole | 85 °C | -40 °C | ITE (Commercial) | 28.4 mm | 1.35 " | 1.12 in | 14.8 mm | 0.58 " | 34.2 mm | 8 V | 70 % | 90 VAC | 308 VAC | 2 | 7-DIP Module | Enclosed | CB, cURus | 160 mA, 250 mA | 2.1 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.03 | |
| 5 | $ 10.87 | |||
| 20 | $ 10.71 | |||
| 40 | $ 9.77 | |||
| 100 | $ 9.45 | |||
| 260 | $ 9.14 | |||
| 500 | $ 8.82 | |||
Description
General part information
BPWX 2 Series
Enclosed AC DC Converters 2 Output 8V 250mA, 250mA 90 ~ 308 VAC Input
