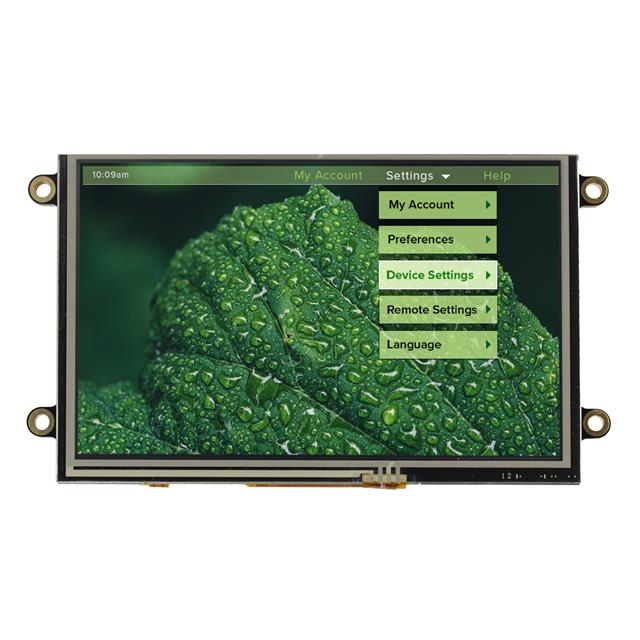

NHD-5.0-HDMI-N-RTXL-CTU
ActiveNewhaven Display Intl
5" TFT HDMI INTERFACE USB-INTERF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NHD-5.0-HDMI-N-RTXL-CTU
ActiveNewhaven Display Intl
5" TFT HDMI INTERFACE USB-INTERF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-5.0-HDMI-N-RTXL-CTU |
|---|---|
| Backlight | LED - White |
| Controller Type | TFP401A |
| Diagonal Screen Size [custom] | 127 mm |
| Diagonal Screen Size [custom] | 5 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 800 |
| Dot Pixels [y] | 480 |
| Graphics Color | Green, Red, Blue |
| Interface | HDMI, USB |
| Touchscreen | Capacitive |
| Viewing Area [x] | 109 mm |
| Viewing Area [y] | 65.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 149.61 | |
Description
General part information
NHD-5.0-HDMI-N-RTXL-CTU
Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color HDMI, USB 5" (127.00mm) 800 x 480
