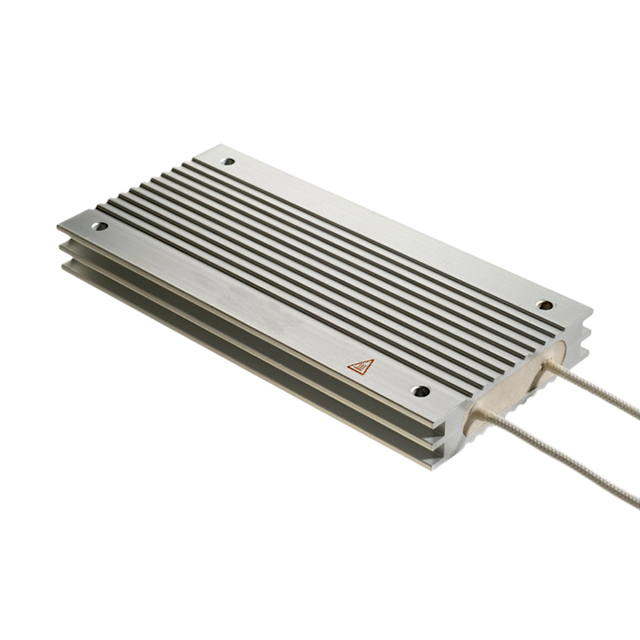

ARF600 20R J

Active

Ohmite

RES CHAS MNT 20 OHM 5% 600W

Search across all available documentation for this part.

Active

Ohmite

RES CHAS MNT 20 OHM 5% 600W

Technical Specifications

Parameters and characteristics for this part

RES CHAS MNT 20 OHM 5% 600W

Part	Tolerance	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Lead Style	Temperature Coefficient	Features	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Coating, Housing Type	Power (Watts)
Ohmite ARF600 20R J	5 %	Rectangular Case	79 mm	300 mm	3.11 "	11.811 in	Wire Leads	150 ppm/°C	Pulse Withstanding	Screw Holes	0 °C	200 °C	Wirewound	18.5 mm	0.728 in	20 Ohms	Aluminum	600 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Ohms ±5% 600W Wirewound Chassis Mount Resistor

Technical documentation and resources

No documents available
