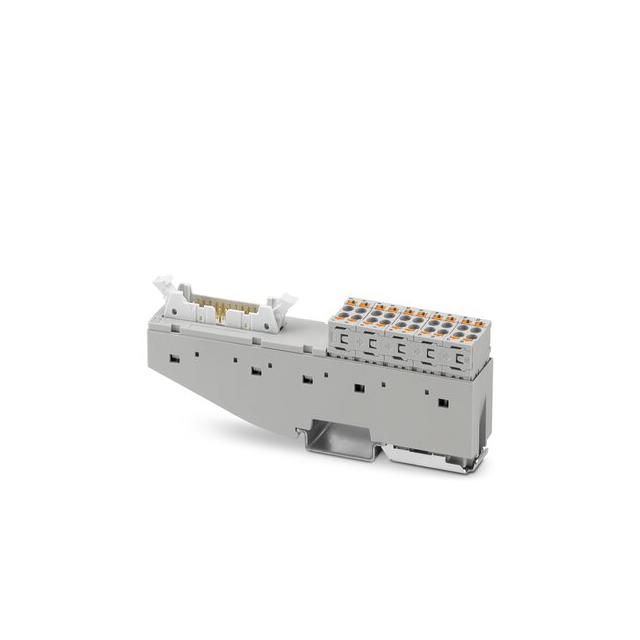

Specification	1278794

Control Side Cable Retainer Type	Latches
Control Side Connection Gender	Male
Control Side Connection Shape	Rectangular
Current Rating (Per Contact)	1 A
Length	5 in
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Positions / Poles	20
Process Side Connection	Terminal Blocks, Spring Connection
Voltage - Rated	60 VDC, 30 VAC
Width	0.744 in
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	16 AWG
