VF16006 BK005

Active

ALPHA WIRE

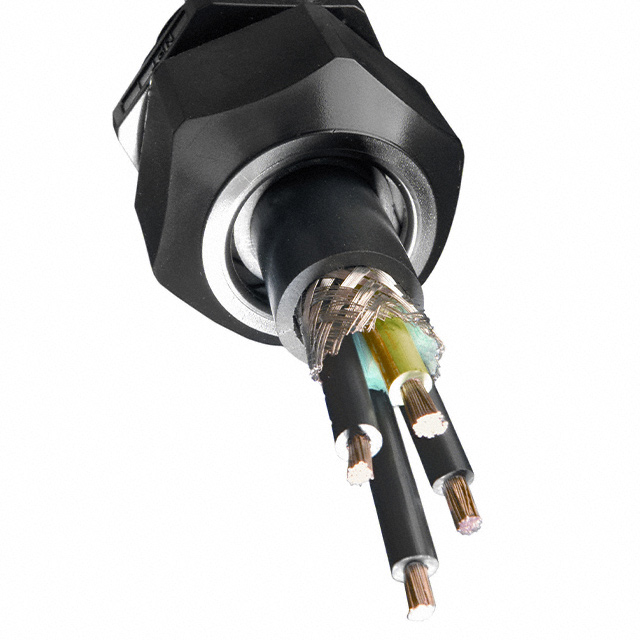

CABLE 4COND 6AWG BLK SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 6AWG BLK SHLD 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VF16006 BK005	VF16006 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (PE)	Polyethylene (PE)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	27 AWG	27 AWG
Conductor Strand [custom]	133	133
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	1.017 in	1.017 in
Jacket (Insulation) Diameter [diameter]	25.83 mm	25.83 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	2.184 mm	2.184 mm
Jacket (Insulation) Thickness	0.086 in	0.086 in
Jacket Color	Black	Black
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	4	4
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Ratings	UL Style 1277	UL Style 1277
Shield Coverage	100 %, 85 %	85 - 100 %
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Foil, Braid	Foil, Braid
Usage	Variable Frequency Drive (VFD), Motor Supply	Variable Frequency Drive (VFD), Motor Supply
Voltage	600 V	600 V
Wire Gauge	6 AWG	6 AWG

CABLE 4COND 6AWG BLACK SHLD

Part	Jacket Color	Shield Material	Cable Type	Jacket (Insulation) Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Wire Gauge	Shield Coverage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Features	Ratings	Conductor Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Usage
ALPHA WIRE VF16006 BK199	Black	Aluminum, Copper, Tinned	Multi-Conductor	Thermoplastic Elastomer (TPE)	Braid, Foil	27 AWG	133	4	6 AWG	85 %, 100 %	Copper, Tinned	1.017 in	25.83 mm	600 V	Drain Wire	UL Style 1277	Polyethylene (PE)	90 °C	-40 °C	2.184 mm	0.086 in
ALPHA WIRE VF16006 BK005	Black	Aluminum, Copper, Tinned	Multi-Conductor	Thermoplastic Elastomer (TPE)	Braid, Foil	27 AWG	133	4	6 AWG	85 %, 100 %	Copper, Tinned	1.017 in	25.83 mm	600 V	Drain Wire	UL Style 1277	Polyethylene (PE)	90 °C	-40 °C	2.184 mm	0.086 in	30.5 m	100 ft	Motor Supply, Variable Frequency Drive (VFD)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable Black 6 AWG Foil, Braid 100.0' (30.5m)
