CGH492T350W5L
ActiveCornell Dubilier Knowles
CAP ALUM 4900UF 350V SCREW CHAS
CGH492T350W5L
ActiveCornell Dubilier Knowles
CAP ALUM 4900UF 350V SCREW CHAS
Description
General part information
CGH492T350W5L

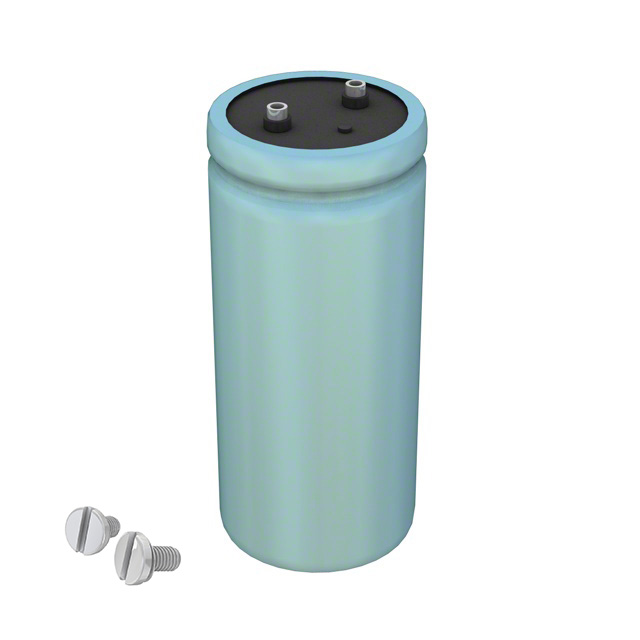

4900 µF 350 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 31.5mOhm @ 120Hz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CGH492T350W5L |
|---|---|
| Applications | General Purpose |
| Capacitance | 4900 µF |
| ESR (Equivalent Series Resistance) | 31.5 mOhm |
| Height - Seated (Max) | 5.625 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 12.423 A, 10.1 A |
| Size / Dimension Diameter | 2.5 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 350 V |
