1241.6824.1114000

Active

SCHURTER Inc.

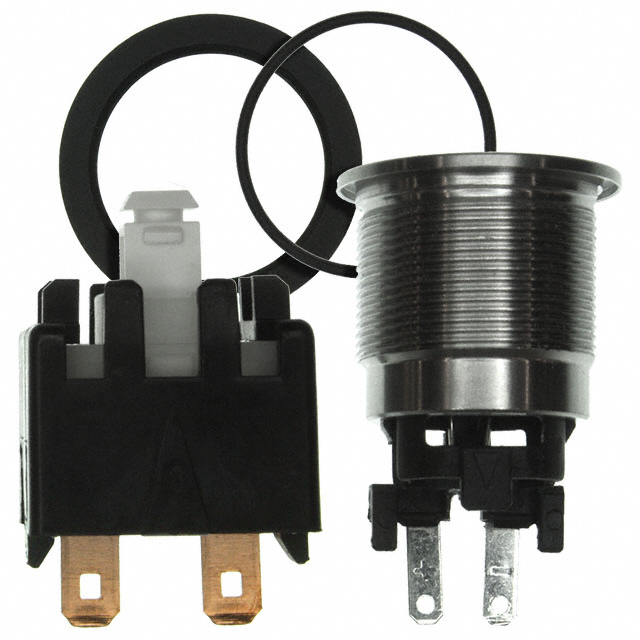

SWITCH PUSHBUTTON SPST 12A 250V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 12A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.6824.1114000	1241.6824 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST	SPST, DPST
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	12 A	12 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination Type, Color	LED, Blue	LED, Blue, Green
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP64 - Dust Tight, Water Resistant	IP64 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	19.1 mm	19.1 mm
Switch Function	Off-On	Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	30 V	30 V

SWITCH PUSHBUTTON SPST 12A 250V

Part	Voltage Rating - AC	Ingress Protection	Voltage Rating - DC	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Switch Function	Color - Actuator/Cap	Mechanical Life	Termination Style	Circuit	Current Rating (Amps)	Electrical Life	Actuator Type	Illumination Voltage (Nominal)	Actuator Marking
SCHURTER Inc. 1241.6824.1114000	250 V	IP64 - Dust Tight, Water Resistant	30 V	Anti-Vandal, Illuminated	85 °C	-20 C	Panel Mount, Front	19.1 mm	Blue, LED	Off-On	Silver	100000 Cycles	Quick Connect - 0.187" (4.7mm)	SPST	12 A	50000 Cycles	Button, Round	24 V	No Marking
SCHURTER Inc. 1241.6824.1122000	250 V	IP64 - Dust Tight, Water Resistant	30 V	Anti-Vandal, Illuminated	85 °C	-20 C	Panel Mount, Front	19.1 mm	Green, LED	Off-On	Silver	100000 Cycles	Quick Connect - 0.187" (4.7mm)	DPST	12 A	50000 Cycles	Button, Round	24 V	No Marking
SCHURTER Inc. 1241.6824.1124000	250 V	IP64 - Dust Tight, Water Resistant	30 V	Anti-Vandal, Illuminated	85 °C	-20 C	Panel Mount, Front	19.1 mm	Blue, LED	Off-On	Silver	100000 Cycles	Quick Connect - 0.187" (4.7mm)	DPST	12 A	50000 Cycles	Button, Round	24 V	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front
