1-770971-0

Active

TE Connectivity AMP Connectors

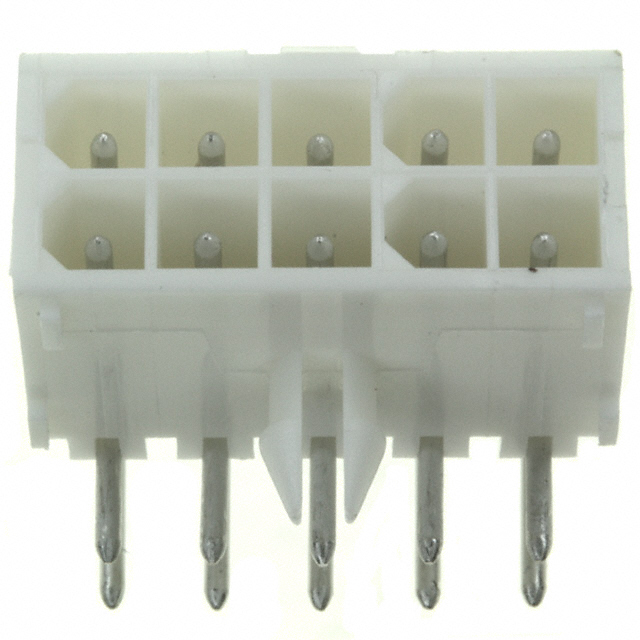

CONN HEADER R/A 10POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 10POS 4.14MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-770971-0	770971 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	150 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	3.81 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	0.145 in	0.145 in
Contact Length - Post	3.68 mm	3.68 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	9.8 mm	9.8 mm
Insulation Height	0.386 in	0.386 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER R/A 10POS 4.14MM

Part	Contact Shape	Mounting Type	Style	Number of Rows	Applications	Insulation Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Voltage Rating	Connector Type	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Type	Material Flammability Rating	Fastening Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating
TE Connectivity AMP Connectors 1-770971-0	Circular	Through Hole, Right Angle	Board to Cable/Wire	2	General Purpose	Nylon, Polyamide (PA)	10	150 Áin	3.81 Ám	White	150 Áin	3.81 Ám	All	9.8 mm	0.386 in	Solder	4.14 mm	0.163 in	Shrouded - 4 Wall	600 VAC	Header	Tin	85 °C	-20 C	Brass	Male Pin	UL94 V-0	Locking Ramp	Varies by Wire Gauge	4.14 mm	0.163 in	0.145 in	3.68 mm
TE Connectivity AMP Connectors 1-770971-1	Circular	Through Hole, Right Angle	Board to Cable/Wire	2	General Purpose	Nylon, Polyamide (PA)	10	30 Áin	0.76 Ám	White	150 Áin	3.81 Ám	All	9.8 mm	0.386 in	Solder	4.14 mm	0.163 in	Shrouded - 4 Wall	600 VAC	Header	Tin	105 ░C	-20 C	Brass	Male Pin	UL94 V-0	Locking Ramp	Varies by Wire Gauge	4.14 mm	0.163 in	0.145 in	3.68 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 10 position 0.163" (4.14mm)
