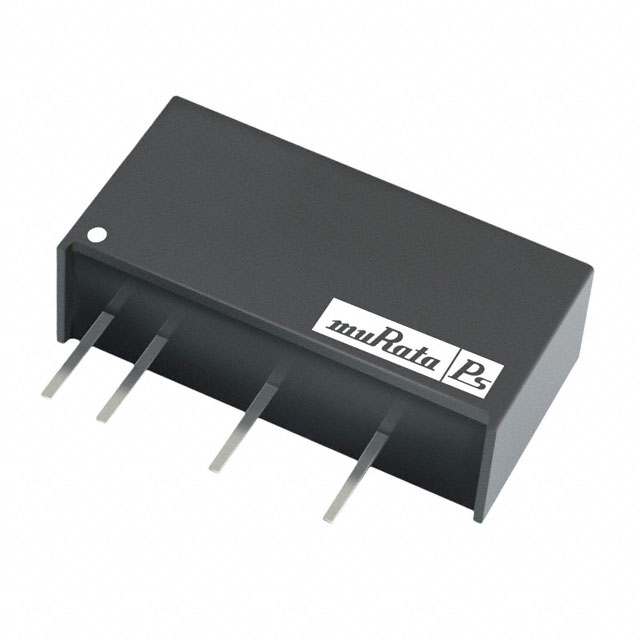

NMK1509SAC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 9V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NMK1509SAC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 9V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NMK1509SAC	NMK15 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	67 - 83 mA
Current - Output (Max)	-	67 mA
Current - Output (Max)	-	111 mA
Current - Output (Max)	-	83 mA
Current - Output (Max) [Max]	222 mA	111 - 400 mA
Efficiency	86 %	84 - 88 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SIP Module, 4 Leads	7-SIP Module, 4 Leads, 7-SIP Module, 5 Leads
Power (Watts)	2 W	2 W
Size / Dimension [x]	19.7 mm	19.7 mm
Size / Dimension [x]	0.77 in	0.77 in
Size / Dimension [y]	0.3 "	0.3 "
Size / Dimension [y]	7.7 mm	7.7 mm
Size / Dimension [z]	0.4 "	0.4 "
Size / Dimension [z]	10.2 mm	10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	16.5 V	16.5 V
Voltage - Input (Min) [Min]	13.5 V	13.5 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	9 V	5 - 15 V
Voltage - Output 2	-	-15 - -9 V

NMK15 Series

DC DC CONVERTER 9V 2W

Part	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input (Max) [Max]	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Number of Outputs	Current - Output (Max) [Max]	Applications	Mounting Type	Power (Watts)	Voltage - Input (Min) [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max) [Min]	Current - Output (Max)
Murata Power Solutions Inc. NMK1509SAC	86 %	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	9 V	16.5 V	Isolated Module	7-SIP Module, 4 Leads	85 °C	-40 °C	3000 V	1	222 mA	ITE (Commercial)	Through Hole	2 W	13.5 V
Murata Power Solutions Inc. NMK1512SAC	87 %	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	12 V	16.5 V	Isolated Module	7-SIP Module, 4 Leads	85 °C	-40 °C	3000 V	1	167 mA	ITE (Commercial)	Through Hole	2 W	13.5 V
Murata Power Solutions Inc. NMK1515SC	88 %	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	15 V	16.5 V	Isolated Module	7-SIP Module, 5 Leads	85 °C	-40 °C	3000 V	2		ITE (Commercial)	Through Hole	2 W	13.5 V	67 mA	67 mA	-15 V
Murata Power Solutions Inc. NMK1505SAC	84 %	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	5 V	16.5 V	Isolated Module	7-SIP Module, 4 Leads	85 °C	-40 °C	3000 V	1	400 mA	ITE (Commercial)	Through Hole	2 W	13.5 V
Murata Power Solutions Inc. NMK1509SC	86 %	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	9 V	16.5 V	Isolated Module	7-SIP Module, 5 Leads	85 °C	-40 °C	3000 V	2	111 mA	ITE (Commercial)	Through Hole	2 W	13.5 V			-9 V	111 mA
Murata Power Solutions Inc. NMK1512SC	88 %	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	12 V	16.5 V	Isolated Module	7-SIP Module, 5 Leads	85 °C	-40 °C	3000 V	2		ITE (Commercial)	Through Hole	2 W	13.5 V	83 mA		-12 V		83 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NMK15 Series

Isolated Module DC DC Converter 1 Output 9V 222mA 13.5V - 16.5V Input
