G-414-C8002
ActiveAearo Technologies LLC, a 3M company

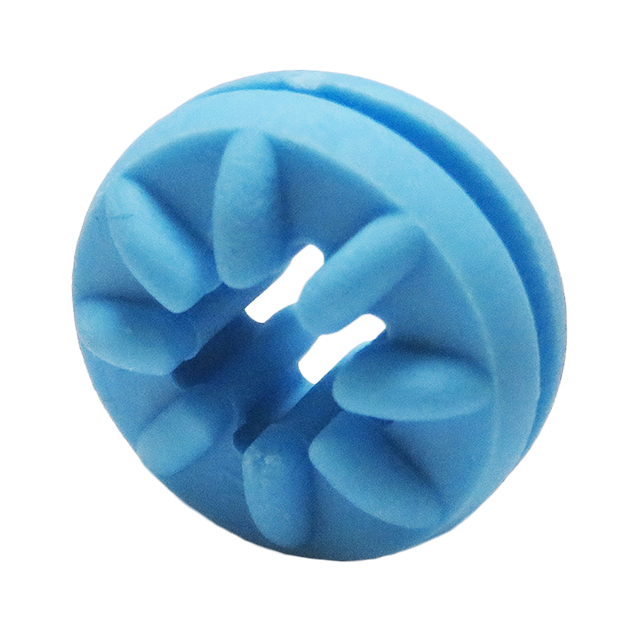

SCREW GROMMET THERMOPLASTIC BLUE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G-414-C8002
ActiveAearo Technologies LLC, a 3M company
SCREW GROMMET THERMOPLASTIC BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | G-414-C8002 | G-414 Series |
|---|---|---|
| Color | Blue | Blue, Black, Yellow |
| Head Diameter [diameter] | 14.3 mm | 14.3 mm |
| Head Diameter [diameter] | 0.563 in | 0.563 in |
| Head Height | 0.313 " | 0.313 " |
| Head Height | 7.95 mm | 7.95 mm |
| Head Height | 0.3125 in | 0.3125 in |
| Material | Thermoplastic | Thermoplastic, Synthetic Rubber |
| Mounting Hole Diameter | 9.53 mm | 9.53 mm |
| Mounting Hole Diameter | 0.375 in | 0.375 in |
| Mounting Hole Diameter | 0.375 in | 0.375 in |
G-414 Series
SCREW GROMMET THERMOPLASTIC BLUE
| Part | Head Height | Head Height | Head Height | Material | Head Diameter [diameter] | Head Diameter [diameter] | Color | Mounting Hole Diameter | Mounting Hole Diameter | Mounting Hole Diameter |
|---|---|---|---|---|---|---|---|---|---|---|
Aearo Technologies LLC, a 3M company G-414-C8002 | 0.313 " | 7.95 mm | 0.3125 in | Thermoplastic | 14.3 mm | 0.563 in | Blue | 9.53 mm | 0.375 in | 0.375 in |
Aearo Technologies LLC, a 3M company G-414-C8012 | 0.313 " | 7.95 mm | 0.3125 in | Thermoplastic | 14.3 mm | 0.563 in | Black | 9.53 mm | 0.375 in | 0.375 in |
Aearo Technologies LLC, a 3M company G-414-C6050 | 0.313 " | 7.95 mm | 0.3125 in | Thermoplastic | 14.3 mm | 0.563 in | Black | 9.53 mm | 0.375 in | 0.375 in |
Aearo Technologies LLC, a 3M company G-414-SL20300 | 0.313 " | 7.95 mm | 0.3125 in | Synthetic Rubber | 14.3 mm | 0.563 in | Black | 9.53 mm | 0.375 in | 0.375 in |
Aearo Technologies LLC, a 3M company G-414-3 | 0.313 " | 7.95 mm | 0.3125 in | Thermoplastic | 14.3 mm | 0.563 in | Yellow | 9.53 mm | 0.375 in | 0.375 in |
Aearo Technologies LLC, a 3M company G-414-SL50300 | 0.313 " | 7.95 mm | 0.3125 in | Synthetic Rubber | 14.3 mm | 0.563 in | Black | 9.53 mm | 0.375 in | 0.375 in |
Aearo Technologies LLC, a 3M company G-414-SL35300 | 0.313 " | 7.95 mm | 0.3125 in | Synthetic Rubber | 14.3 mm | 0.563 in | Black | 9.53 mm | 0.375 in | 0.375 in |
Aearo Technologies LLC, a 3M company G-414-2 | 0.313 " | 7.95 mm | 0.3125 in | Thermoplastic | 14.3 mm | 0.563 in | 9.53 mm | 0.375 in | 0.375 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.26 | |
| 10 | $ 0.25 | |||
Description
General part information
G-414 Series
Screw Grommet Thermoplastic Blue
