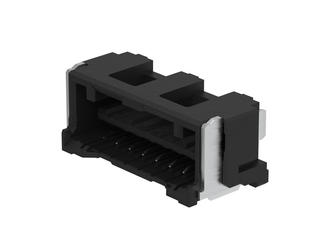

Specification	5025850871

Connector Type	Receptacle
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Type	Forked
Current Rating (Per Contact)	2 A
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.252 in
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.059 in
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	100 VAC

502585 Series

Headers & Wire Housings 1.5 W/B Sgl RA RecAssy11CktEmbsTpPkg

Part	Insulation Color	Current Rating (Per Contact)	Termination	Number of Positions	Pitch - Mating	Style	Number of Positions Loaded	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height	Contact Type	Mounting Type	Features	Contact Finish - Post	Material Flammability Rating	Connector Type	Insulation Material	Contact Material	Contact Finish Thickness - Post	Voltage Rating (Type)	Current Rating	Current Rating
Molex 5025850874	Blue	2 A	Solder	8	0.059 in	Board Cable/Wire	All	1	-40 °C	105 °C	100 VAC	Latch Holder	39.4 µin	Tin	0.252 in	Forked	Right Angle Surface Mount	Solder Retention	Tin	UL94 V-0	Receptacle	Nylon Polyamide (PA)	Copper Alloy	39.4 µin
Molex 5025850270	Beige		Solder	2	0.059 in	Board Cable/Wire	All	1	-40 °C	105 °C		Latch Holder	39.4 µin	Tin	0.25 in	Forked	Right Angle Surface Mount	Pick and Place Solder Retention	Tin	UL94 V-0	Receptacle
Molex 5025851276
Molex 5025850372
Molex 5025850970	Beige		Solder	9	0.059 in	Board Cable/Wire	All	1	-40 °C	105 °C		Latch Holder	39.4 µin	Tin	0.25 in	Forked	Right Angle Surface Mount	Pick and Place Solder Retention	Tin	UL94 V-0	Receptacle
Molex 5025850776
Molex 5025850470	Beige		Solder	4	0.059 in	Board Cable/Wire	All	1	-40 °C	105 °C		Latch Holder	39.4 µin	Tin	0.25 in	Forked	Right Angle Surface Mount	Pick and Place Solder Retention	Tin	UL94 V-0	Receptacle
Molex 5025850972	Red	2 A	Solder	9	0.059 in	Board Cable/Wire	All	1	-40 °C	105 °C	100 VAC	Latch Holder	39.4 µin	Tin	0.252 in	Forked	Right Angle Surface Mount	Solder Retention	Tin	UL94 V-0	Receptacle
Molex 5025851376	Green		Solder	13	0.059 in	Board Cable/Wire	All	1	-40 °C	105 °C	100 VAC	Latch Holder	39.4 µin	Tin	0.252 in	Forked	Right Angle Surface Mount	Solder Retention	Tin	UL94 V-0	Receptacle				AC DC	0 A	Varies by Wire Gauge
Molex 5025851470	Beige		Solder	14	0.059 in	Board Cable/Wire	All	1	-40 °C	105 °C		Latch Holder	39.4 µin	Tin	0.25 in	Forked	Right Angle Surface Mount	Pick and Place Solder Retention	Tin	UL94 V-0	Receptacle
