T4152599L14-002
ActiveTE Connectivity AMP Connectors

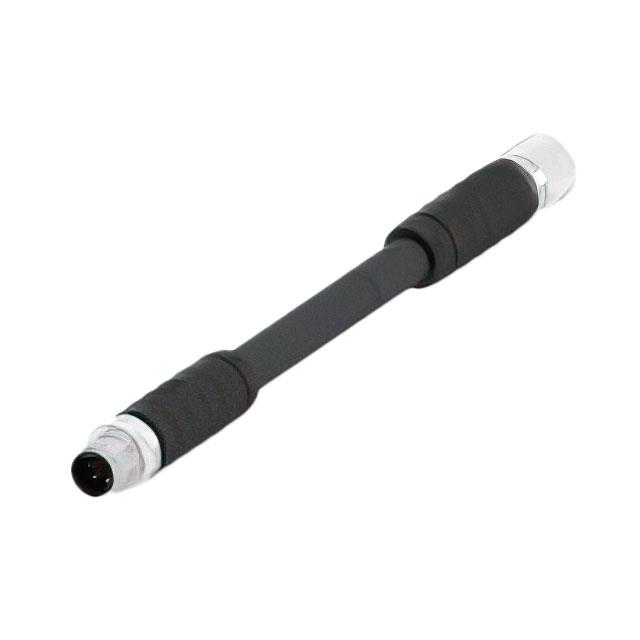

CIRC CBL 4POS RCPT TO PLUG 3.28'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4152599L14-002
ActiveTE Connectivity AMP Connectors
CIRC CBL 4POS RCPT TO PLUG 3.28'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4152599L14-002 | T41525 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 | 4 - 5 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle | Receptacle |
| 2nd Connector Gender | Female Sockets | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 4 | 4 - 5 |
| 2nd Connector Number of Positions Loaded | All | All |
| 2nd Connector Orientation | L | L |
| 2nd Connector Shell Size - Insert | M12 | M12 |
| 2nd Connector Type | Plug | Plug |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC), Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Black | Gray, Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length | - | 4.92 ' |
| Length | - | 1.5 m |
| Length [x] | 1 m | 1 - 500 m |
| Length [x] | 3.28 ft | 1.64 - 23 ft |
| Shielding | Unshielded | Unshielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 41.37 | |
| 10 | $ 38.54 | |||
T41525 Series
CIRC CBL 5POS RCPT TO PLUG 3.28'
| Part | Ingress Protection | Usage | 2nd Connector Gender | 2nd Connector Mounting Type | Color | 2nd Connector Number of Positions Loaded | Shielding | Cable Type | 1st Connector Number of Positions | 1st Connector Shell Size - Insert | 2nd Connector Type | 1st Connector Mounting Type | 2nd Connector Shell Size - Insert | Assembly Configuration | 1st Connector Type | 1st Connector Gender | 2nd Connector Number of Positions | 2nd Connector Orientation | 1st Connector Number of Positions Loaded | Cable Material | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4152599L25-002 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyvinyl Chloride (PVC) | 1 m | 3.28 ft | ||
TE Connectivity AMP Connectors T4152599L14-005 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyvinyl Chloride (PVC) | ||||
TE Connectivity AMP Connectors T41525B9L25-006 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 7 m | 23 ' | ||
TE Connectivity AMP Connectors T41525C9L25-002 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 1 m | 3.28 ft | ||
TE Connectivity AMP Connectors T4152599L14-007 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyvinyl Chloride (PVC) | ||||
TE Connectivity AMP Connectors T4152599L14-020 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyvinyl Chloride (PVC) | 2 m | 6.56 ft | ||
TE Connectivity AMP Connectors T41525C9L25-001 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 500 mm | 1.64 ft | ||
TE Connectivity AMP Connectors T4152599L25-005 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyvinyl Chloride (PVC) | ||||
TE Connectivity AMP Connectors T41525C9L14-200 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyurethane (PUR) | ||||
TE Connectivity AMP Connectors T4152599L14-001 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyvinyl Chloride (PVC) | 500 mm | 1.64 ft | ||
TE Connectivity AMP Connectors T4152599L14-200 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyvinyl Chloride (PVC) | ||||
TE Connectivity AMP Connectors T41525C9L14-004 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyurethane (PUR) | 3 m | 9.84 ft | ||
TE Connectivity AMP Connectors T4152599L14-002 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyvinyl Chloride (PVC) | 1 m | 3.28 ft | ||
TE Connectivity AMP Connectors T41525B9L25-001 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 500 mm | 1.64 ft | ||
TE Connectivity AMP Connectors T4152599L14-006 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyvinyl Chloride (PVC) | 7 m | 23 ' | ||
TE Connectivity AMP Connectors T41525C9L25-200 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | ||||
TE Connectivity AMP Connectors T4152599L14-003 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyvinyl Chloride (PVC) | 4.92 ' | 1.5 m | ||
TE Connectivity AMP Connectors T41525C9L14-003 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyurethane (PUR) | 4.92 ' | 1.5 m | ||
TE Connectivity AMP Connectors T4152599L25-020 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyvinyl Chloride (PVC) | 2 m | 6.56 ft | ||
TE Connectivity AMP Connectors T4152599L25-004 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyvinyl Chloride (PVC) | 3 m | 9.84 ft | ||
TE Connectivity AMP Connectors T41525C9L14-006 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyurethane (PUR) | 7 m | 23 ' | ||
TE Connectivity AMP Connectors T41525B9L25-005 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | ||||
TE Connectivity AMP Connectors T4152599L25-007 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyvinyl Chloride (PVC) | ||||
TE Connectivity AMP Connectors T41525C9L25-003 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 4.92 ' | 1.5 m | ||
TE Connectivity AMP Connectors T4152599L25-200 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyvinyl Chloride (PVC) | ||||
TE Connectivity AMP Connectors T41525C9L25-007 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | ||||
TE Connectivity AMP Connectors T4152599L14-004 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyvinyl Chloride (PVC) | 3 m | 9.84 ft | ||
TE Connectivity AMP Connectors T41525B9L25-004 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 3 m | 9.84 ft | ||
TE Connectivity AMP Connectors T41525C9L14-001 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyurethane (PUR) | 500 mm | 1.64 ft | ||
TE Connectivity AMP Connectors T41525C9L14-005 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyurethane (PUR) | ||||
TE Connectivity AMP Connectors T4152599L25-001 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyvinyl Chloride (PVC) | 500 mm | 1.64 ft | ||
TE Connectivity AMP Connectors T41525B9L25-007 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | ||||
TE Connectivity AMP Connectors T41525C9L25-020 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 2 m | 6.56 ft | ||
TE Connectivity AMP Connectors T41525C9L14-007 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyurethane (PUR) | ||||
TE Connectivity AMP Connectors T4152599L25-003 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyvinyl Chloride (PVC) | 4.92 ' | 1.5 m | ||
TE Connectivity AMP Connectors T41525B9L25-003 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 4.92 ' | 1.5 m | ||
TE Connectivity AMP Connectors T41525C9L25-006 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 7 m | 23 ' | ||
TE Connectivity AMP Connectors T41525C9L14-002 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyurethane (PUR) | 1 m | 3.28 ft | ||
TE Connectivity AMP Connectors T4152599L25-006 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyvinyl Chloride (PVC) | 7 m | 23 ' | ||
TE Connectivity AMP Connectors T41525C9L25-005 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | ||||
TE Connectivity AMP Connectors T41525B9L25-020 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 2 m | 6.56 ft | ||
TE Connectivity AMP Connectors T41525B9L25-200 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | ||||
TE Connectivity AMP Connectors T41525B9L25-002 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 1 m | 3.28 ft | ||
TE Connectivity AMP Connectors T41525C9L14-020 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Black | All | Unshielded | Round | 4 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 4 | L | All | Polyurethane (PUR) | 2 m | 6.56 ft | ||
TE Connectivity AMP Connectors T41525C9L25-004 | IP67 - Dust Tight, Waterproof | Industrial Environments | Female Sockets | Free Hanging (In-Line) | Gray | All | Unshielded | Round | 5 | M12 | Plug | Free Hanging (In-Line) | M12 | Standard | Receptacle | Male Pins | 5 | L | All | Polyurethane (PUR) | 3 m | 9.84 ft |
Description
General part information
T41525 Series
Circular Cable Assembly Unshielded 3.28' (1.00m)
