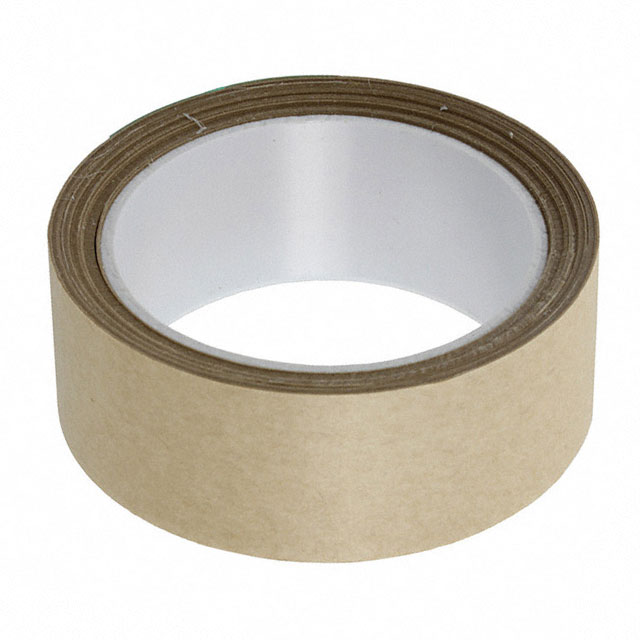

Specification	9703-12-5

Adhesive	Pressure Sensitive Adhesive (PSA)
Backing	Polycoated Kraft Liner
Carrier	Polycoated Kraft Liner
Length (ft)	15 ft
Length (yd)	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Tape Type	Adhesive Transfer
Thickness - Adhesive	0.002 in
Thickness - Backing, Carrier	0.004 in
Usage	Electrically Conductive
Width	12 in

9703 Series

Part	Storage/Refrigeration Temperature	Shelf Life Start	Shelf Life	Operating Temperature (Min)	Operating Temperature (Max)	Material	Shape	Thickness - Overall	Length	Type	Adhesive	Width
3M (TC) 9703-2"-36YDS	70 °F	Date of Shipment	24 Months	-40 °C	85 °C	Acrylic	Rectangular	0.024 in	108.005 ft	Shielding Tape	Pressure Sensitive Adhesive (PSA)	2 in
3M (TC) 9703-0.5-1.5(25)	70 °F	Date of Shipment	24 Months	-40 °C	85 °C	Acrylic	Rectangular	0.024 in 0.5 in	1.5 in 75 ft	Shielding Tape	Pressure Sensitive Adhesive (PSA)	1.5 in 12.7 mm
3M (TC) 9703 3" X 36YDS						Acrylic	Rectangular	0.024 in 0.079 in	108.005 ft	Shielding Tape	Acrylic	3 in
3M (TC) 9703-0.75"-36YDS	70 °F	Date of Shipment	24 Months	-40 °C	85 °C	Acrylic	Rectangular		108.005 ft	Shielding Tape	Pressure Sensitive Adhesive (PSA)	0.75 in
3M (TC) 3M 9703 1/2" X 3/4"-25	70 °F	Date of Shipment	24 Months	-40 °C	85 °C	Acrylic	Rectangular	0.024 in 0.5 in	0.75 in 75 ft	Shielding Tape	Pressure Sensitive Adhesive (PSA)	0.75 in 12.7 mm
3M (TC) 9703-0.75-1.5(25)	70 °F	Date of Shipment	24 Months	-40 °C	85 °C	Acrylic	Rectangular	0.024 in 0.75 in	1.5 in 75 ft	Shielding Tape	Pressure Sensitive Adhesive (PSA)	0.75 in 1.5 in
3M (TC) 9703SQ-0.5(25)	70 °F	Date of Shipment	24 Months	-40 °C	85 °C	Acrylic	Rectangular Square	0.024 in	0.5 in 75 ft	Shielding Tape	Pressure Sensitive Adhesive (PSA)	12.7 mm
3M (TC) 9703-1.5-4(10)	70 °F	Date of Shipment	24 Months	-40 °C	85 °C	Acrylic	Rectangular	0.024 in 1.5 in	4 in 29.987 ft	Shielding Tape	Pressure Sensitive Adhesive (PSA)	1.5 in 4 in
3M (TC) 9703 12" X 36YDS						Acrylic	Rectangular	0.024 in 0.079 in	108.005 ft	Shielding Tape	Acrylic	12 in
3M (TC) 9703-0.75-5	70 °F	Date of Shipment	24 Months	-40 °C	85 °C	Acrylic	Rectangular	0.024 in	14.993 ft	Shielding Tape	Pressure Sensitive Adhesive (PSA)	0.75 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

9703-12-5 | Datasheet
