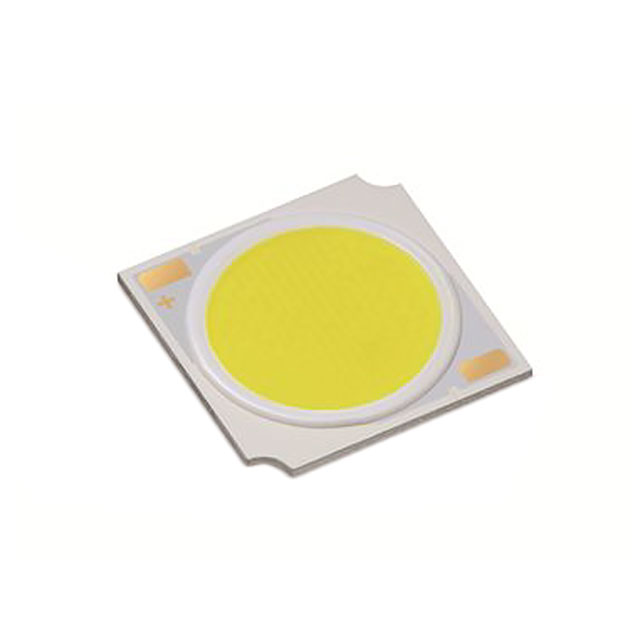

CLU034-1206B8-42GV1F6

Active

Citizen

LED COB CLU034 WHITE SQUARE

Search across all available documentation for this part.

Active

Citizen

LED COB CLU034 WHITE SQUARE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLU034-1206B8-42GV1F6	CLU034 Series

Color	White	White, Pink
Configuration	Square	Square
CRI (Color Rendering Index)	94	94
Current - Max [Max]	1.08 A	1.08 - 1.44 A
Current - Test	540 mA	540 - 720 mA
Height [z]	1.4 mm	1.4 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	14.5 mm	14.5 mm
Lumens/Watt @ Current - Test	111 lm/W	65 - 111 lm/W
Luminous Flux @ Current/Temperature	2142 lm	1665 - 2142 lm
Size / Dimension [x]	19 mm	19 mm
Size / Dimension [y]	19 mm	19 mm
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	35.7 V	35.7 V

LED COB CLU034 WHITE SQUARE

Part	Lumens/Watt @ Current - Test	Lens Type	Configuration	Current - Test	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Height [z]	Current - Max [Max]	Type	Luminous Flux @ Current/Temperature	Color	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)
Citizen CLU034-1206B8-42GV1F6	111 lm/W	Flat	Square	540 mA	35.7 V	14.5 mm	1.4 mm	1.08 A	Chip On Board (COB)	2142 lm	White	19 mm	19 mm	94
Citizen CLU034-1208B8-LPGV1F7	65 lm/W	Flat	Square	720 mA	35.7 V	14.5 mm	1.4 mm	1.44 A	Chip On Board (COB)	1665 lm	Pink	19 mm	19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	48	$ 11.45

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU034 White Square
