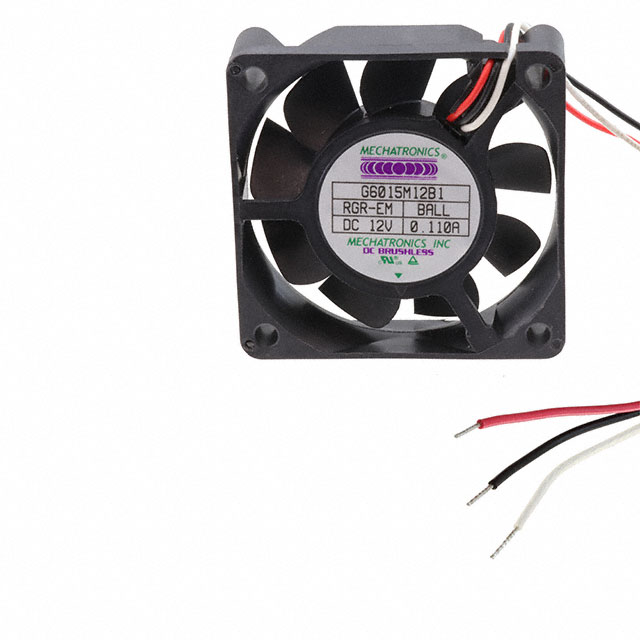

G6015M12B1-RGR-EM

Active

Mechatronics Fan Group

FAN AXIAL 60X15.3MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs Datasheet +1

G6015M12B1-RGR-EM

Active

Mechatronics Fan Group

FAN AXIAL 60X15.3MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.05
		10	$ 16.27
		25	$ 15.31
		50	$ 14.72
		100	$ 13.56
		250	$ 12.69
		500	$ 12.50

Description

General part information

G6015 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 16.0 CFM (0.448m³/min) 3 Wire Leads

Documents

Technical documentation and resources

DC Lead Wire Specs

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet

Specification	G6015M12B1-RGR-EM	G6015 Series

Air Flow	0.448 mł/min	0.336 - 0.672 m³/min
Air Flow	16 CFM	12 - 24 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	110 mA	0.065 - 150 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Thermal Overload Protector (TOP)	Locked Rotor Sensor, Thermal Overload Protector (TOP), Speed Sensor (Tach), PWM Control, Conformal Coating, Alarm Sensor
Ingress Protection	IP57 - Dust Protected, Waterproof	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	28 dB	21 - 39 dB(A)
RPM	4000 RPM	2800 - 5800 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	-	0.1 - 0.3 in H2O
Static Pressure	-	24.9 - 74.7 Pa
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated	12 VDC	5 - 24 VDC
Weight	26.76 g	25.85 - 50.35 g
Weight	0.059 lb	0.057 - 0.111 lb
Width [x]	15.3 mm	15 - 15.3 mm

Part

Termination

Air Flow

Features

Weight

Size / Dimension [x]

Size / Dimension [y]

Fan Type

Current Rating (Amps)

Static Pressure

Voltage - Rated

RPM

Approval Agency

Width [x]

Bearing Type

Noise

Material - Blade

Ingress Protection

Mechatronics Fan Group

G6015H24B2-RHR-TTL

3 Wire Leads

18 CFM

0.504 m³/min

Locked Rotor Sensor

0.111 lb

50.35 g

60 mm

Tubeaxial

100 mA

0.21 in H2O

52.3 Pa

24 VDC

4600 RPM

CE, cUL, TUV, UL

15 mm

Ball

33 dB(A)

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

G6015L24B-RGR

2 Wire Leads

14 CFM

0.392 m³/min

Thermal Overload Protector (TOP)

0.111 lb

50.35 g

60 mm

Tubeaxial

0.065 A

0.12 in H2O

29.9 Pa

24 VDC

3400 RPM

CE, cUL, TUV, UL

15 mm

Ball

25 dB(A)

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

G6015H12B1-RHR-EM

3 Wire Leads

18 CFM

0.504 m³/min

Speed Sensor (Tach)

0.111 lb

50.35 g

60 mm

Tubeaxial

150 mA

0.21 in H2O

52.3 Pa

12 VDC

4600 RPM

CE, cUL, TUV, UL

15 mm

Ball

33 dB(A)

Polybutylene Terephthalate (PBT)

IP57 - Dust Protected, Waterproof

Mechatronics Fan Group

G6015H12B1-RGR-EM

3 Wire Leads

18 CFM

0.504 m³/min

Speed Sensor (Tach), Thermal Overload Protector (TOP)

0.111 lb

50.35 g

60 mm

Tubeaxial

150 mA

0.21 in H2O

52.3 Pa

12 VDC

4600 RPM

CE, cUL, TUV, UL

15 mm

Ball

33 dB(A)

Polybutylene Terephthalate (PBT)

IP57 - Dust Protected, Waterproof

Mechatronics Fan Group

G6015M24B-RGR-EM

2 Wire Leads

16 CFM

0.448 mł/min

Thermal Overload Protector (TOP)

0.111 lb

50.35 g

60 mm

Tubeaxial

75 mA

24 VDC

4000 RPM

CE, cUL, TUV, UL

15 mm

Ball

28 dB

Polybutylene Terephthalate (PBT)

IP57 - Dust Protected, Waterproof

Mechatronics Fan Group

G6015H12B2-RHR

3 Wire Leads

18 CFM

0.504 m³/min

Locked Rotor Sensor

0.111 lb

50.35 g

60 mm

Tubeaxial

150 mA

0.21 in H2O

52.3 Pa

12 VDC

4600 RPM

CE, cUL, TUV, UL

15 mm

Ball

33 dB(A)

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

G6015H12B1-RHR-TTL

3 Wire Leads

18 CFM

0.504 m³/min

Speed Sensor (Tach)

0.111 lb

50.35 g

60 mm

Tubeaxial

150 mA

0.21 in H2O

52.3 Pa

12 VDC

4600 RPM

CE, cUL, TUV, UL

15 mm

Ball

33 dB(A)

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

G6015H12B1+6-RHR

4 Wire Leads

18 CFM

0.504 m³/min

PWM Control, Speed Sensor (Tach)

0.111 lb

50.35 g

60 mm

Tubeaxial

150 mA

0.21 in H2O

52.3 Pa

12 VDC

4600 RPM

CE, cUL, TUV, UL

15 mm

Ball

33 dB(A)

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

G6015L05B-RHR

2 Wire Leads

14 CFM

0.392 m³/min

0.111 lb

50.35 g

60 mm

Tubeaxial

0.13 in H2O

32.4 Pa

5 V

3400 RPM

CE, cUL, TUV, UL

15 mm

Ball

26 dB

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

G6015S12B2-RGR

3 Wire Leads

12 CFM

0.336 mł/min

Locked Rotor Sensor, Thermal Overload Protector (TOP)

0.111 lb

50.35 g

60 mm

Tubeaxial

70 mA

0.1 in H2O

24.9 Pa

12 VDC

2800 RPM

CE, cUL, TUV, UL

15 mm

Ball

21 dB(A)

Polybutylene Terephthalate (PBT)

Part	Termination	Air Flow	Air Flow	Features	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Fan Type	Current Rating (Amps)	Static Pressure	Static Pressure	Voltage - Rated	RPM	Approval Agency	Width [x]	Bearing Type	Noise	Material - Blade	Ingress Protection
Mechatronics Fan Group G6015H24B2-RHR-TTL	3 Wire Leads	18 CFM	0.504 m³/min	Locked Rotor Sensor	0.111 lb	50.35 g	60 mm	60 mm	Tubeaxial	100 mA	0.21 in H2O	52.3 Pa	24 VDC	4600 RPM	CE, cUL, TUV, UL	15 mm	Ball	33 dB(A)	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group G6015L24B-RGR	2 Wire Leads	14 CFM	0.392 m³/min	Thermal Overload Protector (TOP)	0.111 lb	50.35 g	60 mm	60 mm	Tubeaxial	0.065 A	0.12 in H2O	29.9 Pa	24 VDC	3400 RPM	CE, cUL, TUV, UL	15 mm	Ball	25 dB(A)	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group G6015H12B1-RHR-EM	3 Wire Leads	18 CFM	0.504 m³/min	Speed Sensor (Tach)	0.111 lb	50.35 g	60 mm	60 mm	Tubeaxial	150 mA	0.21 in H2O	52.3 Pa	12 VDC	4600 RPM	CE, cUL, TUV, UL	15 mm	Ball	33 dB(A)	Polybutylene Terephthalate (PBT)	IP57 - Dust Protected, Waterproof
Mechatronics Fan Group G6015H12B1-RGR-EM	3 Wire Leads	18 CFM	0.504 m³/min	Speed Sensor (Tach), Thermal Overload Protector (TOP)	0.111 lb	50.35 g	60 mm	60 mm	Tubeaxial	150 mA	0.21 in H2O	52.3 Pa	12 VDC	4600 RPM	CE, cUL, TUV, UL	15 mm	Ball	33 dB(A)	Polybutylene Terephthalate (PBT)	IP57 - Dust Protected, Waterproof
Mechatronics Fan Group G6015M24B-RGR-EM	2 Wire Leads	16 CFM	0.448 mł/min	Thermal Overload Protector (TOP)	0.111 lb	50.35 g	60 mm	60 mm	Tubeaxial	75 mA			24 VDC	4000 RPM	CE, cUL, TUV, UL	15 mm	Ball	28 dB	Polybutylene Terephthalate (PBT)	IP57 - Dust Protected, Waterproof
Mechatronics Fan Group G6015H12B2-RHR	3 Wire Leads	18 CFM	0.504 m³/min	Locked Rotor Sensor	0.111 lb	50.35 g	60 mm	60 mm	Tubeaxial	150 mA	0.21 in H2O	52.3 Pa	12 VDC	4600 RPM	CE, cUL, TUV, UL	15 mm	Ball	33 dB(A)	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group G6015H12B1-RHR-TTL	3 Wire Leads	18 CFM	0.504 m³/min	Speed Sensor (Tach)	0.111 lb	50.35 g	60 mm	60 mm	Tubeaxial	150 mA	0.21 in H2O	52.3 Pa	12 VDC	4600 RPM	CE, cUL, TUV, UL	15 mm	Ball	33 dB(A)	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group G6015H12B1+6-RHR	4 Wire Leads	18 CFM	0.504 m³/min	PWM Control, Speed Sensor (Tach)	0.111 lb	50.35 g	60 mm	60 mm	Tubeaxial	150 mA	0.21 in H2O	52.3 Pa	12 VDC	4600 RPM	CE, cUL, TUV, UL	15 mm	Ball	33 dB(A)	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group G6015L05B-RHR	2 Wire Leads	14 CFM	0.392 m³/min		0.111 lb	50.35 g	60 mm	60 mm	Tubeaxial		0.13 in H2O	32.4 Pa	5 V	3400 RPM	CE, cUL, TUV, UL	15 mm	Ball	26 dB	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group G6015S12B2-RGR	3 Wire Leads	12 CFM	0.336 mł/min	Locked Rotor Sensor, Thermal Overload Protector (TOP)	0.111 lb	50.35 g	60 mm	60 mm	Tubeaxial	70 mA	0.1 in H2O	24.9 Pa	12 VDC	2800 RPM	CE, cUL, TUV, UL	15 mm	Ball	21 dB(A)	Polybutylene Terephthalate (PBT)
