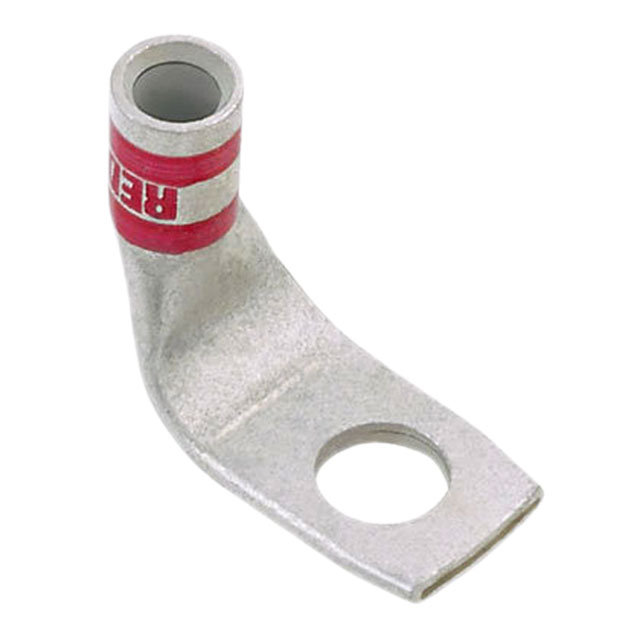

Specification	LCAX8-14F-L

Color	Red
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.18 in
Diameter - Barrel OD	0.27 in
Diameter - Ring ID	0.27 in
Insulation	Non-Insulated
Mounting Type	Right Angle, Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Tab Thickness	0.07 in
Terminal Style	Single Stud Hole
Terminal Type	Rectangular Tongue
Termination	Barrel, Crimb
Width - Outer Edges	0.48 in
Wire Gauge	8 AWG

LCAX Series

...

Part	Diameter - Ring ID	Contact Material	Contact Finish	Diameter - Barrel ID	Diameter - Barrel OD	Stud/Tab Size	Stud/Tab Size	Tab Thickness	Mounting Type	Wire Gauge (MCM)	Width - Outer Edges	Terminal Style	Color	Termination	Terminal Type	Insulation	Wire Gauge	Length - Overall
Panduit Corp LCAX650-38H-6	0.41 in	Copper	Electro-Tin	1.05 in	1.35 in	0.375 in	3 Stud 8 Stud	0.3 in	45° Angle Free Hanging (In-Line)	650 MCM	1.95 in	Single Stud Hole	Black	Barrel Crimb	Rectangular Tongue	Non-Insulated
Panduit Corp LCAX2-14H-E	0.27 in	Copper	Electro-Tin	0.36 in	0.47 in	0.25 Stud		0.11 in	45° Angle Free Hanging (In-Line)		0.7 in	Single Stud Hole	Brown	Barrel Crimb	Rectangular Tongue	Non-Insulated	2 AWG
Panduit Corp LCAX1-10-X		Copper	Electro-Tin			10 Stud		0.12 in	Free Hanging (In-Line)		0.76 in	Single Stud Hole	Green	Barrel Crimb	Rectangular Tongue	Non-Insulated	1 AWG	1.5 in
Panduit Corp LCAX500-12-6						0.5 Stud		0.26 in	Free Hanging (In-Line)	500 MCM	1.89 in	Single Stud Hole	Pink	Barrel Crimb	Rectangular Tongue	Non-Insulated		3.64 in
Panduit Corp LCAX650-58H-6	0.66 in	Copper	Electro-Tin	1.05 in	1.35 in	0.625 in	5 Stud 8 Stud	0.3 in	45° Angle Free Hanging (In-Line)	650 MCM	1.95 in	Single Stud Hole	Black	Barrel Crimb	Rectangular Tongue	Non-Insulated
Panduit Corp LCAX3/0-38-T	0.41 in	Copper	Electro-Tin	0.57 in	0.71 in	0.375 in	3 Stud 8 Stud	0.14 in	Free Hanging (In-Line)		1.06 in	Single Stud Hole	Orange	Barrel Crimb	Rectangular Tongue	Non-Insulated	3/0 AWG	2.17 in
Panduit Corp LCAX6-10F-L	0.2 in	Copper	Electro-Tin	0.22 in	0.31 in	10 Stud		0.09 in	Free Hanging (In-Line) Right Angle		0.45 in	Single Stud Hole	Blue	Barrel Crimb	Rectangular Tongue	Non-Insulated	6 AWG
Panduit Corp LCAX2/0-38F-X	0.41 in	Copper	Electro-Tin	0.51 in	0.64 in	0.375 in	3 Stud 8 Stud	0.13 in	Free Hanging (In-Line) Right Angle		0.96 in	Single Stud Hole	Black	Barrel Crimb	Rectangular Tongue	Non-Insulated	2/0 AWG
Panduit Corp LCAX650-12H-6	0.53 in	Copper	Electro-Tin	1.05 in	1.35 in	0.5 Stud		0.3 in	45° Angle Free Hanging (In-Line)	650 MCM	1.95 in	Single Stud Hole	Black	Barrel Crimb	Rectangular Tongue	Non-Insulated
Panduit Corp LCAXN750-12-3	0.53 in	Copper	Electro-Tin	1.17 in	1.5 in	0.5 Stud		0.33 in	Free Hanging (In-Line)	750 MCM	1.5 in	Single Stud Hole	Yellow	Barrel Crimb	Rectangular Tongue	Non-Insulated		3.94 in
