Description
General part information

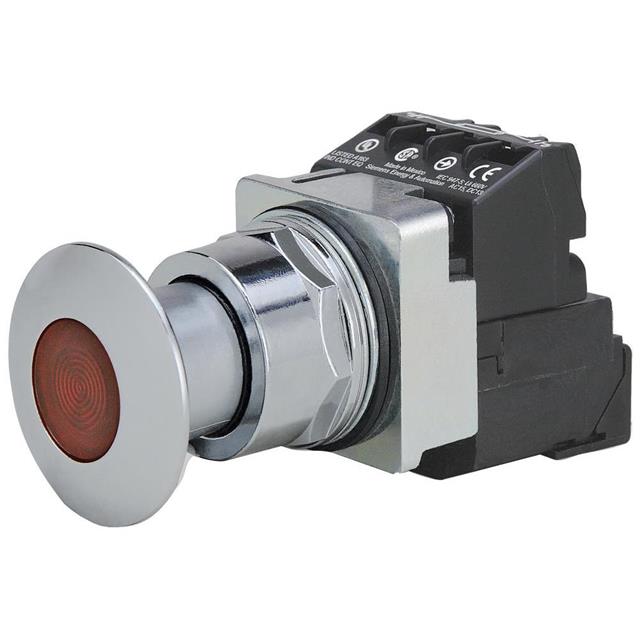

52PP2L2A
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 52PP2L2A |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | DPST-NO/NC |
| Color | Red |
| Color - Actuator/Cap | Silver, Orange |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 24 V |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
