T38021-05-0
ActiveCurtis Industries

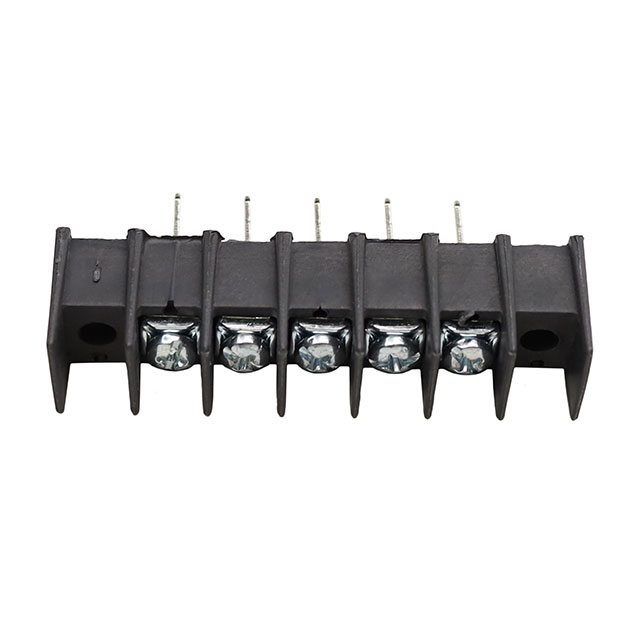

CONN BARRIER STRIP 5CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
T38021-05-0
ActiveCurtis Industries
CONN BARRIER STRIP 5CIRC 0.375"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T38021-05-0 | T38021 Series |
|---|---|---|
| - | - | |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Solder Turret | Solder Turret |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 5 | 2 - 26 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 5 | 2 - 26 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.03 | |
| 10 | $ 2.31 | |||
| 25 | $ 2.16 | |||
| 50 | $ 1.92 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.84 | |||
T38021 Series
CONN BARRIER STRIP 4CIRC 0.375"
| Part | Material Flammability Rating | Operating Temperature | Features | Current Rating (Amps) | Barrier Type | Mounting Type | Top Termination | Terminal Block Type | Material - Insulation | Number of Rows | Number of Wire Entries | Voltage Rating | Wire Gauge [Min] | Wire Gauge [Max] | Pitch [x] | Pitch [x] | Number of Circuits | Bottom Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries T38021-04-0 | UL94 V-0 | 105 C | Flange | 20 A | 2 Wall (Dual) | Chassis, Panel | Screws with Captive Plate | Barrier Block | Polypropylene (PP) | 1 | 4 | 300 VDC | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | 4 | Solder Turret |
Curtis Industries T38021-05-0 | UL94 V-0 | 105 C | Flange | 20 A | 2 Wall (Dual) | Chassis, Panel | Screws with Captive Plate | Barrier Block | Polypropylene (PP) | 1 | 5 | 300 VDC | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | 5 | Solder Turret |
Curtis Industries T38021-25-0 | UL94 V-0 | 105 C | Flange | 20 A | 2 Wall (Dual) | Chassis, Panel | Screws with Captive Plate | Barrier Block | Polypropylene (PP) | 1 | 25 | 300 VDC | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | 25 | Solder Turret |
Curtis Industries T38021-14-0 | UL94 V-0 | 105 C | Flange | 20 A | 2 Wall (Dual) | Chassis, Panel | Screws with Captive Plate | Barrier Block | Polypropylene (PP) | 1 | 14 | 300 VDC | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | 14 | Solder Turret |
Curtis Industries T38021-26-0 | UL94 V-0 | 105 C | Flange | 20 A | 2 Wall (Dual) | Chassis, Panel | Screws with Captive Plate | Barrier Block | Polypropylene (PP) | 1 | 26 | 300 VDC | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | 26 | Solder Turret |
Curtis Industries T38021-02-0 | UL94 V-0 | 105 C | Flange | 20 A | 2 Wall (Dual) | Chassis, Panel | Screws with Captive Plate | Barrier Block | Polypropylene (PP) | 1 | 2 | 300 VDC | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | 2 | Solder Turret |
Curtis Industries T38021-11-0 | UL94 V-0 | 105 C | Flange | 20 A | 2 Wall (Dual) | Chassis, Panel | Screws with Captive Plate | Barrier Block | Polypropylene (PP) | 1 | 11 | 300 VDC | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | 11 | Solder Turret |
Curtis Industries T38021-20-0 | UL94 V-0 | 105 C | Flange | 20 A | 2 Wall (Dual) | Chassis, Panel | Screws with Captive Plate | Barrier Block | Polypropylene (PP) | 1 | 20 | 300 VDC | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | 20 | Solder Turret |
Curtis Industries T38021-17-0 | UL94 V-0 | 105 C | Flange | 20 A | 2 Wall (Dual) | Chassis, Panel | Screws with Captive Plate | Barrier Block | Polypropylene (PP) | 1 | 17 | 300 VDC | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | 17 | Solder Turret |
Curtis Industries T38021-10-0 | UL94 V-0 | 105 C | Flange | 20 A | 2 Wall (Dual) | Chassis, Panel | Screws with Captive Plate | Barrier Block | Polypropylene (PP) | 1 | 10 | 300 VDC | 12 AWG | 22 AWG | 9.53 mm | 0.375 in | 10 | Solder Turret |
Description
General part information
T38021 Series
5 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
