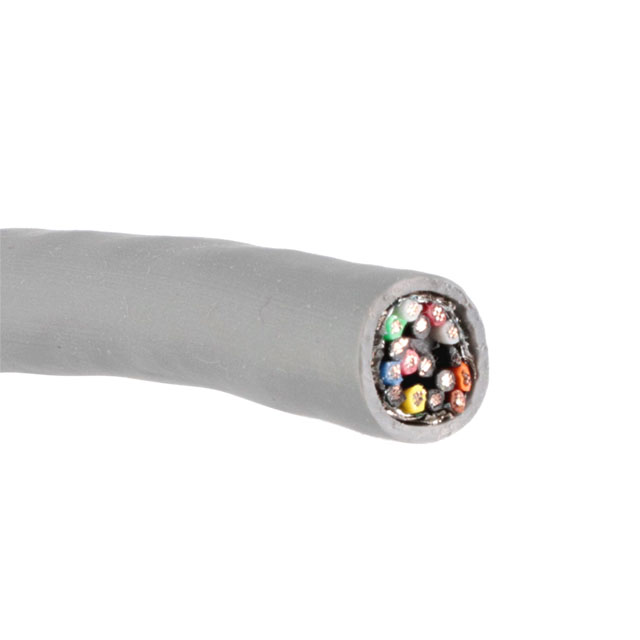

8308 060100

Active

Belden Inc.

MULTI-PAIR 16COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 16COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8308 060100

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	9.75 mm
Jacket (Insulation) Diameter [diameter]	0.384 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	16
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	22 AWG

Part	Number of Conductors	Jacket Color	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length [x]	Length [x]	Ratings	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Shield Material	Jacket (Insulation) Material	Shield Type
Belden Inc. 8308 060100	16	Chrome	Poly-Vinyl Chloride (PVC)	9.75 mm	0.384 in	Copper Tinned	30.5 m	100 ft	UL Style 2464	Computer	-30 ░C	80 C	22 AWG	Multi-Pair	7	30 AWG	0.04 in	1.016 mm	65 % 100 %	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 (8 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil, Braid 100.0' (30.5m)
