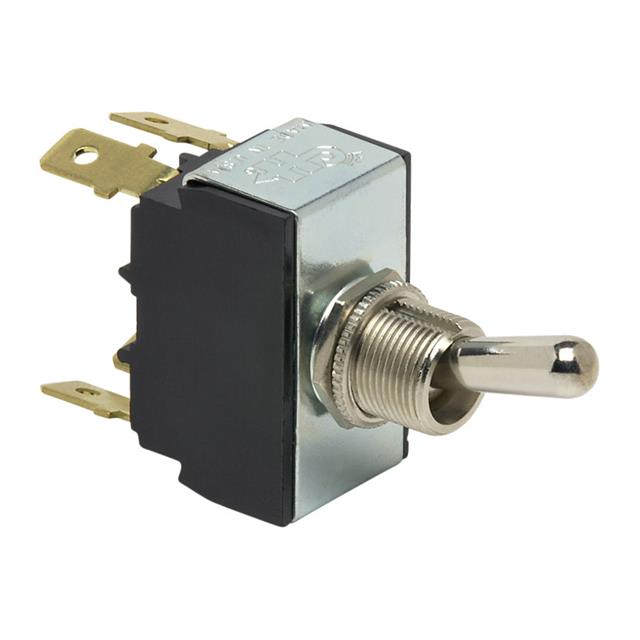

55018-01

Active

Cole Hersee

SWITCH TOGGLE DPDT 15A 24V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH TOGGLE DPDT 15A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	55018-01

Actuator Length [x]	17.46 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	15 A
Features	Polarity Reversing
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	11.9 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	24 V

SWITCH TOGGLE DPDT 15A 24V

Part	Circuit	Actuator Length [x]	Features	Illumination	Current Rating (Amps)	Actuator Material	Panel Cutout Dimensions [diameter]	Bushing Thread	Termination Style	Voltage Rating - DC	Switch Function	Actuator Type
Cole Hersee 55018-01	DPDT	17.46 mm	Polarity Reversing	Non-Illuminated	15 A	Brass, Nickel Plated	11.9 mm	15/32-32	Quick Connect - 0.250" (6.3mm)	24 V	On-On	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 24.72

General part information

Toggle Switch DPDT Panel Mount
