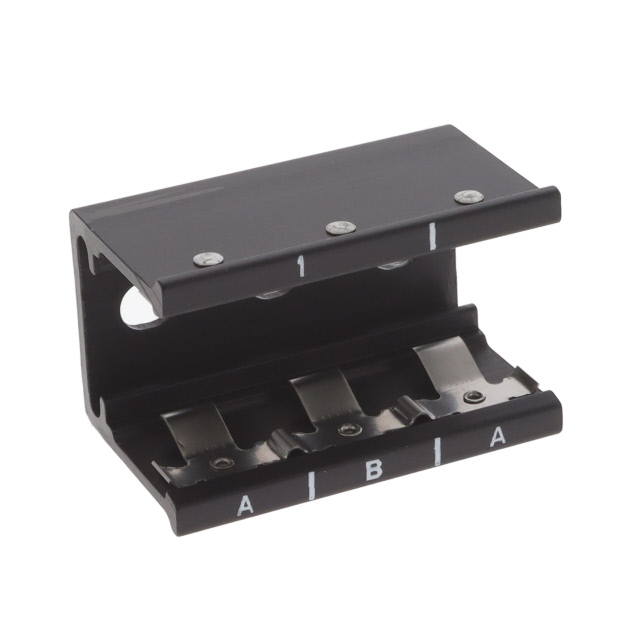

SJT503404

Active

AMPHENOL PCD

CONN RAIL 1.554" L X 0.885" W

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN RAIL 1.554" L X 0.885" W

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RAIL MOD MNT TRACK 10 POS

Part	Type	Module Capacity	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]
AMPHENOL PCD SJT510504	Rail	10
AMPHENOL PCD SJT507504	Rail	7
AMPHENOL PCD SJT502304	Rail	2	0.9 "	1.036 "	0.885 "	22.86 mm	26.31 mm	22.48 mm
AMPHENOL PCD SJT506404	Rail	6	0.915 "	3.108 in	0.885 "	23.24 mm	78.94 mm	22.48 mm
AMPHENOL PCD SJT514404	Rail	14	0.915 "	7.252 in	0.885 "	23.24 mm	184.2 mm	22.48 mm
AMPHENOL PCD SJT505404	Rail	5	0.915 "	2.59 in	0.885 "		65.79 mm		22.48 mm	23.24 mm
AMPHENOL PCD SJT504101	Rail	4	0.9 "	2.072 in	0.885 "	22.86 mm	52.63 mm	22.48 mm
AMPHENOL PCD SJT505104	Rail	5	0.9 "	2.59 in	0.885 "	22.86 mm	65.79 mm	22.48 mm
AMPHENOL PCD SJT512404	Rail	12	0.915 "	6.216 in	0.885 "	23.24 mm	157.89 mm	22.48 mm
AMPHENOL PCD SJT525504	Rail	25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 20.69

General part information

Connector Rail Contact Size

Technical documentation and resources
