M80-FC21005F2-0150F2
ActiveHarwin Inc.

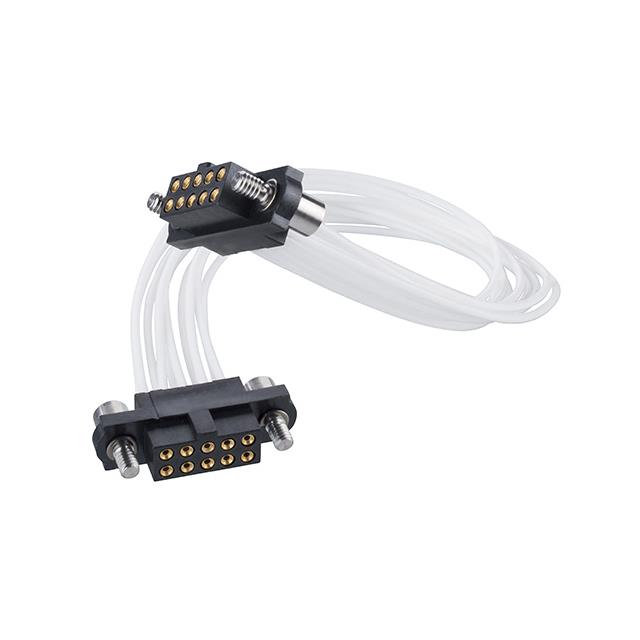

5+5 POS. FEMALE DIL 24AWG CABLE ASSEMBLY, 150MM, DOUBLE-END, JACKSCREW ROHS COMPLIANT: YES
M80-FC21005F2-0150F2
ActiveHarwin Inc.
5+5 POS. FEMALE DIL 24AWG CABLE ASSEMBLY, 150MM, DOUBLE-END, JACKSCREW ROHS COMPLIANT: YES
Description
General part information
M80-FC21005F2-0150F2
10 Position Cable Assembly Rectangular Socket to Socket 0.492' (150.00mm, 5.91")
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-FC21005F2-0150F2 |
|---|---|
| Cable Termination | Crimp |
| Color | White |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Length | 0.492 ft |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch - Connector | 0.079 in |
| Shielding | Unshielded |
