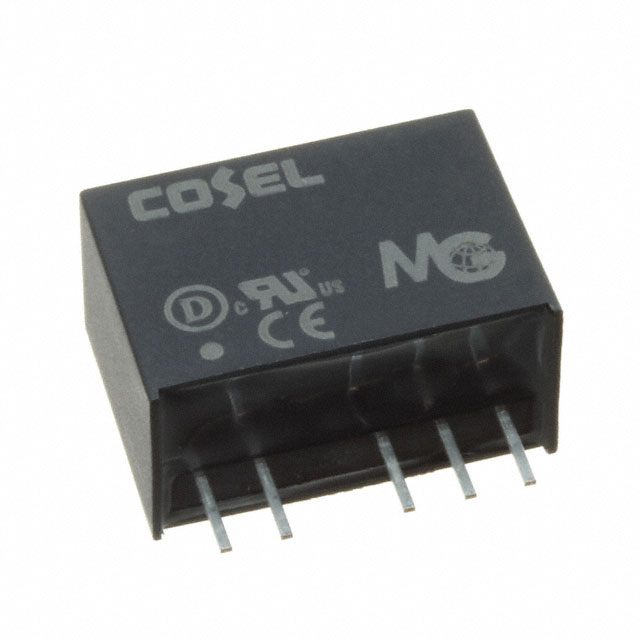

MGW1R54812
ActiveCosel USA, Inc.
DC-DC CONVERTER, 12V/-12V, 0.065A ROHS COMPLIANT: YES
MGW1R54812
ActiveCosel USA, Inc.
DC-DC CONVERTER, 12V/-12V, 0.065A ROHS COMPLIANT: YES
Description
General part information
MGW1R54812
Isolated Module DC DC Converter 2 Output 12V -12V 65mA, 65mA 36V - 76V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MGW1R54812 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 65 mA |
| Efficiency | 81 % |
| Features | OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 5-SIP Module |
| Size / Dimension Height | 0.47 in |
| Size / Dimension Length | 0.67 in |
| Size / Dimension Width | 0.33 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 76 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
