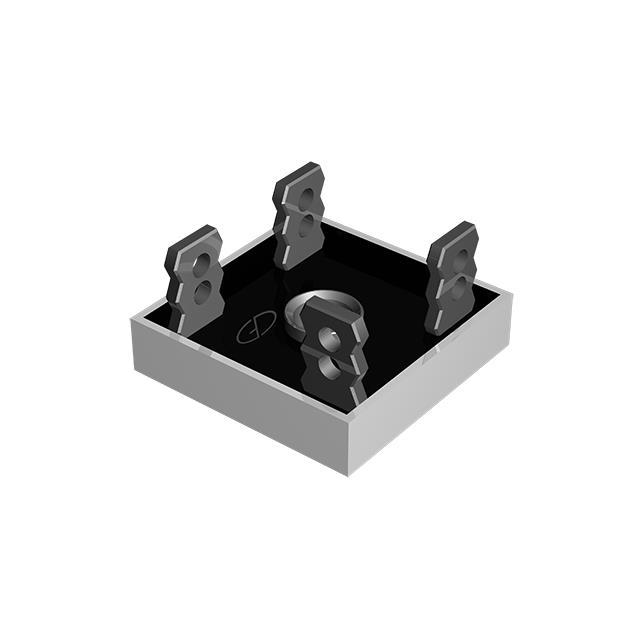

KBPC15005

Active

Good-Ark Semiconductor

BRIDGE RECT 1PHASE 50V 15A KBPC

Search across all available documentation for this part.

Active

Good-Ark Semiconductor

BRIDGE RECT 1PHASE 50V 15A KBPC

Technical Specifications

Parameters and characteristics for this part

Specification	KBPC15005

Current - Average Rectified (Io)	15 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-Square, KBPC
Supplier Device Package	KBPC
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	50 V

BRIDGE RECT 1PHASE 50V 15A KBPC

Part	Package / Case	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Diode Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Mounting Type
Good-Ark Semiconductor KBPC15005	4-Square, KBPC	1.1 V	10 µA	Single Phase	KBPC	-55 °C	150 °C	Standard	15 A	50 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 50 V Chassis Mount KBPC
