25093 BK199
ActiveALPHA WIRE

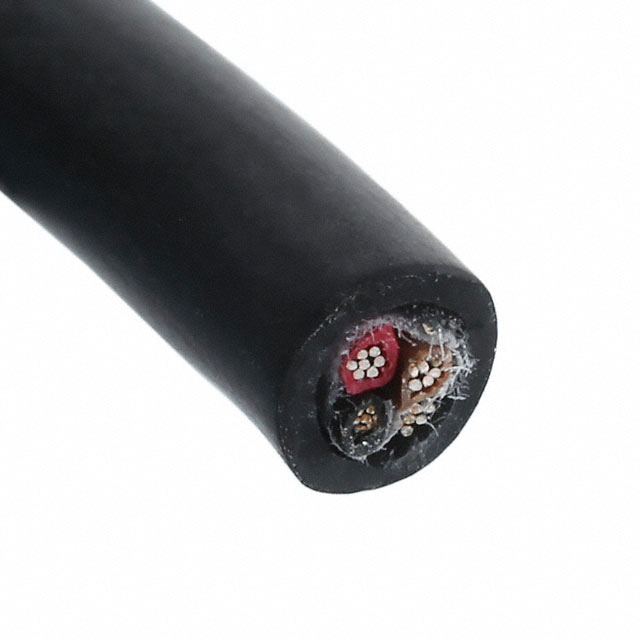

CABLE 3COND 24AWG BLK SHLD FEET
Deep-Dive with AI
Search across all available documentation for this part.
25093 BK199
ActiveALPHA WIRE
CABLE 3COND 24AWG BLK SHLD FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25093 BK199 | 25093 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG | 32 AWG |
| Conductor Strand [custom] | 7 | 7 |
| Features | Rip Cord, Biological Compatibility, Drain Wire | Rip Cord, Biological Compatibility, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.167 " | 0.167 " |
| Jacket (Insulation) Diameter [diameter] | 4.24 mm | 4.24 mm |
| Jacket (Insulation) Material | Polyurethane (PU) | Polyurethane (PU) |
| Jacket Color | Black | Black, Slate, Orange |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Number of Conductors | 3 | 3 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 | UL Style 20668, ISO 10993 |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Spool Size | 1000 ft | 1000 ft |
| Spool Size | 304.8 m | 304.8 m |
| Voltage | 300 V | 300 V |
| Wire Gauge | 24 AWG | 24 AWG |
25093 Series
CABLE 3COND 24AWG BLK SHLD FEET
| Part | Length | Ratings | Voltage | Cable Type | Conductor Insulation | Features | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Shield Type | Wire Gauge | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Coverage | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Spool Size | Spool Size | Jacket Color | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 25093 BK199 | Enter Number of Feet in Order Quantity | ISO 10993, UL Style 20668 | 300 V | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Biological Compatibility, Drain Wire, Rip Cord | 3 | 32 AWG | 7 | Copper, Tinned | Foil | 24 AWG | Aluminum | -30 ░C | 90 °C | 100 % | Polyurethane (PU) | 0.167 " | 4.24 mm | 1000 ft | 304.8 m | Black | ||
ALPHA WIRE 25093 SL199 | ISO 10993, UL Style 20668 | 300 V | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Biological Compatibility, Drain Wire, Rip Cord | 3 | 32 AWG | 7 | Copper, Tinned | Foil | 24 AWG | Aluminum | -30 ░C | 90 °C | 100 % | Polyurethane (PU) | 0.167 " | 4.24 mm | Slate | 1000 ft | 304.8 m | |||
ALPHA WIRE 25093 OR199 | ISO 10993, UL Style 20668 | 300 V | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Biological Compatibility, Drain Wire, Rip Cord | 3 | 32 AWG | 7 | Copper, Tinned | Foil | 24 AWG | Aluminum | -30 ░C | 90 °C | 100 % | Polyurethane (PU) | 0.167 " | 4.24 mm | Orange |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 3.86 | |
| 3 | $ 3.58 | |||
| 5 | $ 3.44 | |||
| 7 | $ 3.36 | |||
| 10 | $ 3.29 | |||
| 25 | $ 3.08 | |||
| 50 | $ 3.03 | |||
Description
General part information
25093 Series
3 Conductor Multi-Conductor Cable Black 24 AWG Foil Enter Number of Feet in Order Quantity
