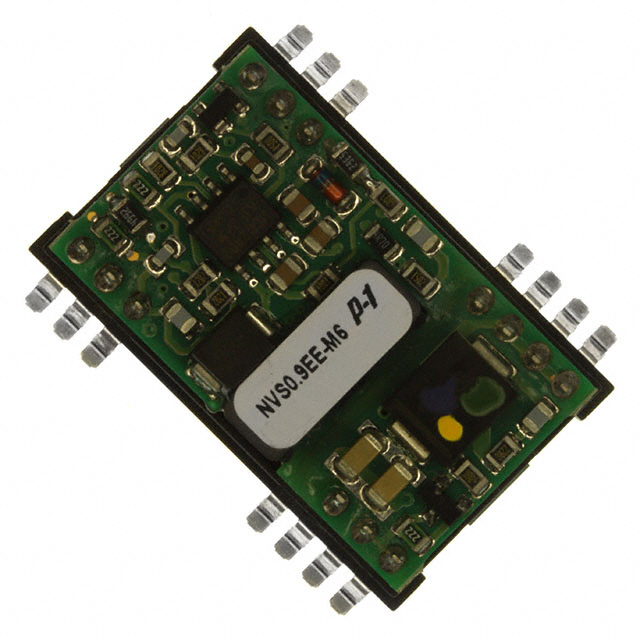

NVS0.9EE-M6

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 6W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 6W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 3.3V 6W

Part	Voltage - Output 1	Features	Voltage - Isolation	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Applications	Mounting Type	Efficiency	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Power (Watts)
Bel Power Solutions NVS0.9EE-M6	3.3 V	OCP	1.5 kV	1	-40 °C	110 °C	900 mA	0.81 in	20.6 mm	1.3 "	8.4 mm	33 mm	0.33 in	ITE (Commercial)	Surface Mount	80 %	24-SMD Module, 14 Leads	18 V	75 V	Isolated Module	6 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 900mA 18V - 75V Input

Technical documentation and resources

No documents available
