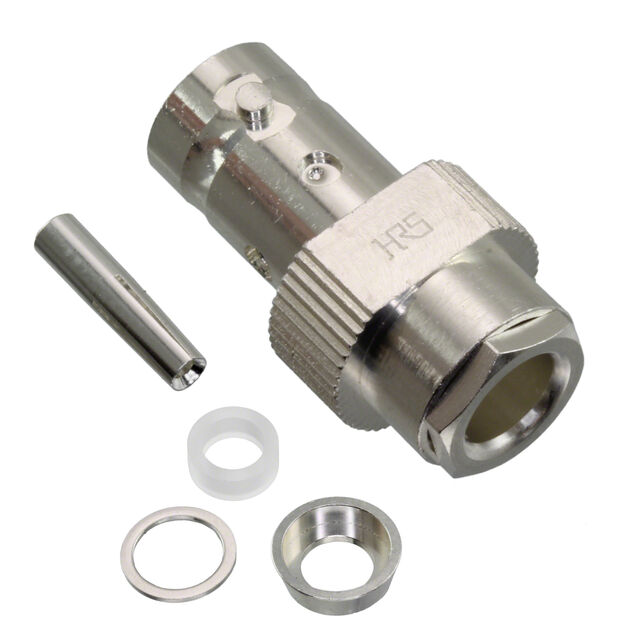

3CV-J(40)
ObsoleteHirose Electric USA, Inc.
CONN BNC JACK STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3CV-J(40)
ObsoleteHirose Electric USA, Inc.
CONN BNC JACK STR 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3CV-J(40) |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | 3C-2V |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 1 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Shield Termination | Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3CV-J(40)
BNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Documents
Technical documentation and resources
