Description
General part information
21033111815

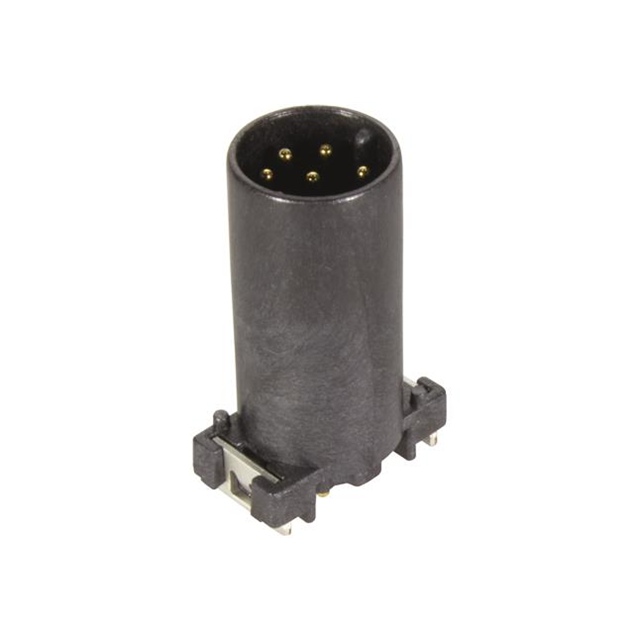

8 Position Circular Connector Receptacle, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 21033111815 |
|---|---|
| Connector Type | Receptacle, Male Pins |
| Contact Material | Copper Alloy |
| Current Rating | 2 A |
| Fastening Type | Push-Pull |
| Features | Board Guide, Flange |
| Insert Material | LCP, Liquid Crystal Polymer |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Shell Size - Insert | M12-8 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 30 V |
