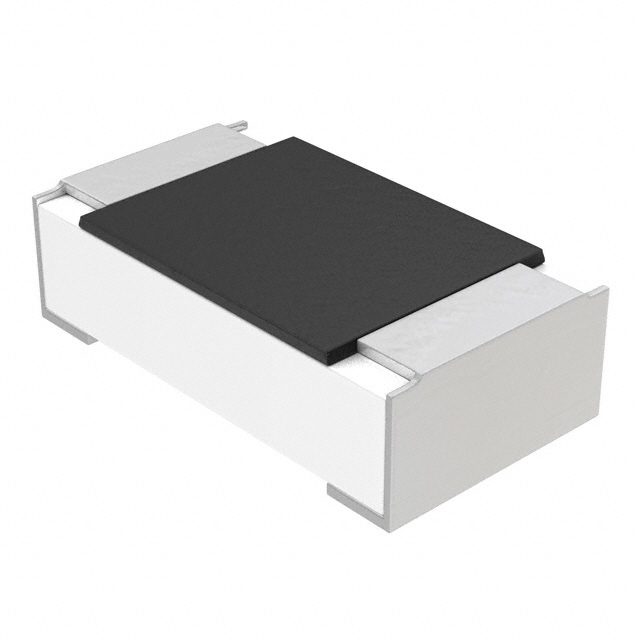

MCT06030D2612BP500

Active

Vishay Beyschlag/Draloric/BC Components

RES 26.1K OHM 0.1% 1/10W 0603

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MCT06030D2612BP500

Active

Vishay Beyschlag/Draloric/BC Components

RES 26.1K OHM 0.1% 1/10W 0603

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MCT06030D2612BP500	MCT0603 Series

Composition	Thin Film	Thin Film
Features	Anti-Sulfur	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max) [Max] [z]	0.022 in	0.022 in
Height - Seated (Max) [Max] [z]	0.55 mm	0.55 mm
Number of Terminations	2	2
Operating Temperature [Max]	125 °C	125 - 347 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Power (Watts)	0.1 W	0.1 - 250 W
Power (Watts)	0.1 W	0.1 - 0.25 W
Power (Watts)	-	0.125 W
Ratings	-	AEC-Q200
Resistance	26.1 kOhms	0 - 750000 kOhms
Size / Dimension [x]	0.061 in	0.061 in
Size / Dimension [x]	1.55 mm	1.55 mm
Size / Dimension [y]	0.85 mm	0.85 mm
Size / Dimension [y]	0.033 in	0.033 in
Temperature Coefficient	25 ppm/°C	10 - 50 ppm/°C
Tolerance	0.1 %	0.1 - 1 %
Tolerance	-	Jumper

MCT0603 Series

RES 11.5K OHM 0.5% 1/10W 0603

...

Part	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Power (Watts)	Temperature Coefficient	Number of Terminations	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Resistance	Power (Watts)	Tolerance
Vishay Beyschlag/Draloric/BC Components MCT06030C1152DP500	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	50 ppm/°C	2	Anti-Sulfur	155 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	11.5 kOhms
Vishay Beyschlag/Draloric/BC Components MCT06030D1272BP500	Thin Film	0.022 in	0.55 mm		0.1 W	25 ppm/°C	2	Anti-Sulfur	125 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	12.7 kOhms	0.1 W	0.1 %
Vishay Beyschlag/Draloric/BC Components MCT06030D1402BP500	Thin Film	0.022 in	0.55 mm		0.1 W	25 ppm/°C	2	Anti-Sulfur	125 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	14 kOhms	0.1 W	0.1 %
Vishay Beyschlag/Draloric/BC Components MCT06030D9102BP100	Thin Film	0.022 in	0.55 mm		0.1 W	25 ppm/°C	2	Anti-Sulfur	125 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	91 kOhms	0.1 W	0.1 %
Vishay Beyschlag/Draloric/BC Components MCT06030C3002FP500	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	50 ppm/°C	2	Anti-Sulfur	155 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)			1 %
Vishay Beyschlag/Draloric/BC Components MCT06030D3091BP500	Thin Film	0.022 in	0.55 mm		0.1 W	25 ppm/°C	2	Anti-Sulfur	125 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	3.09 kOhms	0.1 W	0.1 %
Vishay Beyschlag/Draloric/BC Components MCT06030D3481BP500	Thin Film	0.022 in	0.55 mm		0.1 W	25 ppm/°C	2	Anti-Sulfur	125 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	3.48 kOhms	0.1 W	0.1 %
Vishay Beyschlag/Draloric/BC Components MCT06030D1820BP100	Thin Film	0.022 in	0.55 mm		0.1 W	25 ppm/°C	2	Anti-Sulfur	125 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	182 Ohms	0.1 W	0.1 %
Vishay Beyschlag/Draloric/BC Components MCT06030D6041BP100	Thin Film	0.022 in	0.55 mm		0.1 W	25 ppm/°C	2	Anti-Sulfur	125 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	6.04 kOhms	0.1 W	0.1 %
Vishay Beyschlag/Draloric/BC Components MCT06030C3921FPW00	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	50 ppm/°C	2	Anti-Sulfur	155 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	3.92 kOhms		1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.05

Description

General part information

MCT0603 Series

26.1 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur Thin Film
