B84143A0008R000
ActiveEPCOS - TDK Electronics

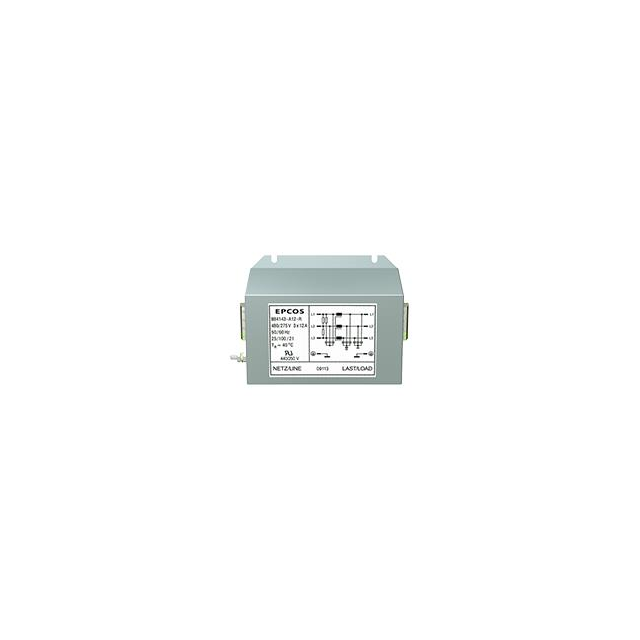

LINE FILTER 480V/275VAC 8A CHAS
B84143A0008R000
ActiveEPCOS - TDK Electronics
LINE FILTER 480V/275VAC 8A CHAS
Description
General part information
B84143A0008R000
Three Phase (Delta) EMC/EMI Line Filter 8 A 480V, 275V 50 ~ 60Hz Single Stage Terminal Block, Threaded Post (M6)
Technical Specifications
Parameters and characteristics for this part
| Specification | B84143A0008R000 |
|---|---|
| Applications | Inverters, Power Drive Systems |
| Approval Agency | cUL, ENEC, UL |
| Configuration | Single Stage |
| Current | 8 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Termination Style | Threaded Post (M6), Terminal Block |
| Voltage - Rated AC | 480V, 275V |
| Voltage - Rated AC (Phase to Ground/Neutral) | 275 V |
| Voltage - Rated AC (Phase to Phase) | 480 V |
