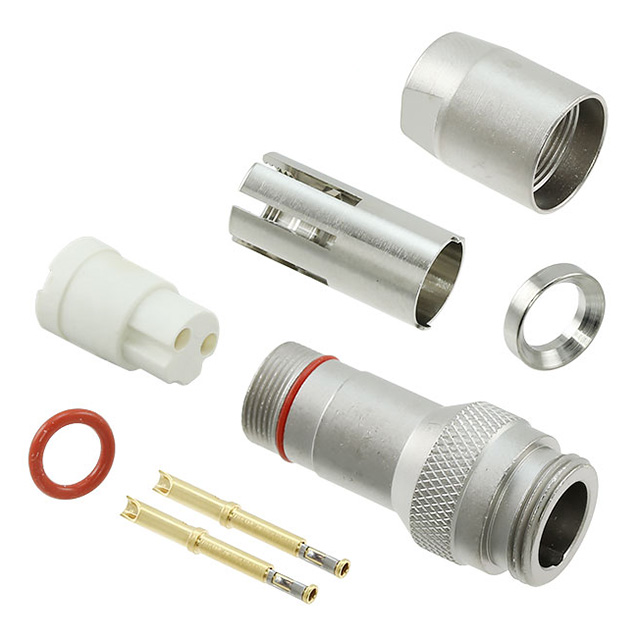

TS2L2F20C

Active

Switchcraft Inc.

CONN RCPT FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2L2F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, Plating	Copper Alloy, Nickel
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

CONN RCPT FMALE 2POS GOLD CRIMP

Part	Insert Material	Ingress Protection	Features	Voltage Rating	Shell Material	Contact Material	Contact Finish - Mating	Orientation	Shell Finish	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Primary Material	Number of Positions	Mounting Type	Shielding	Termination	Applications	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Color
Switchcraft Inc. TS2L2F20C	Liquid Crystal Polymer (LCP)	IP66, IP67, IP68	Backshell	125 VAC	Copper Alloy	Copper Alloy	Gold	Keyed	Electroless Nickel	Copper Alloy, Nickel	5.49 mm	4.57 mm	0.18 in	0.216 in	Metal	2	Free Hanging (In-Line)	Shielded	Crimp, Solder Cup	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	135 °C	-40 °C	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
