IS25WP016D-JLLE
ActiveISSI, Integrated Silicon Solution Inc

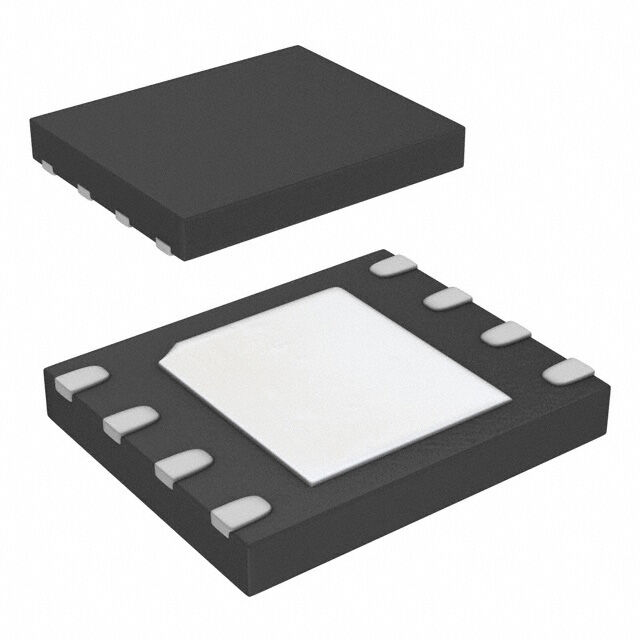

IC FLASH 16MBIT SPI/QUAD 8WSON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IS25WP016D-JLLE
ActiveISSI, Integrated Silicon Solution Inc
IC FLASH 16MBIT SPI/QUAD 8WSON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | IS25WP016D-JLLE | IS25WP016D Series |
|---|---|---|
| Clock Frequency | 133 MHz | 133 MHz |
| Memory Format | FLASH | FLASH |
| Memory Interface | Quad I/O, QPI, SPI, DTR | Quad I/O, QPI, SPI, DTR |
| Memory Organization | 2 M | 2 M |
| Memory Size | 16 Mb | 16 Mb |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 °C | 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (8x6) | 8-WSON (8x6) |
| Technology | FLASH - NOR | FLASH - NOR |
| Voltage - Supply [Max] | 1.95 V | 1.95 V |
| Voltage - Supply [Min] | 1.65 V | 1.65 V |
| Write Cycle Time - Word, Page | 800 µs | 800 µs |
IS25WP016D Series
IC FLASH 16MBIT SPI/QUAD 8WSON
| Part | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Memory Type | Operating Temperature [Max] | Operating Temperature [Min] | Memory Organization | Memory Interface | Technology | Write Cycle Time - Word, Page | Supplier Device Package | Memory Format | Memory Size | Clock Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ISSI, Integrated Silicon Solution Inc IS25WP016D-JLLE | 8-WDFN Exposed Pad | 1.95 V | 1.65 V | Surface Mount | Non-Volatile | 105 °C | -40 °C | 2 M | DTR, QPI, Quad I/O, SPI | FLASH - NOR | 800 µs | 8-WSON (8x6) | FLASH | 16 Mb | 133 MHz |
ISSI, Integrated Silicon Solution Inc IS25WP016D-JULE-TR | FLASH | 16 Mb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1440 | $ 0.76 | |
Description
General part information
IS25WP016D Series
FLASH - NOR Memory IC 16Mbit SPI - Quad I/O, QPI, DTR 133 MHz 8-WSON (8x6)
