HX5181NLT

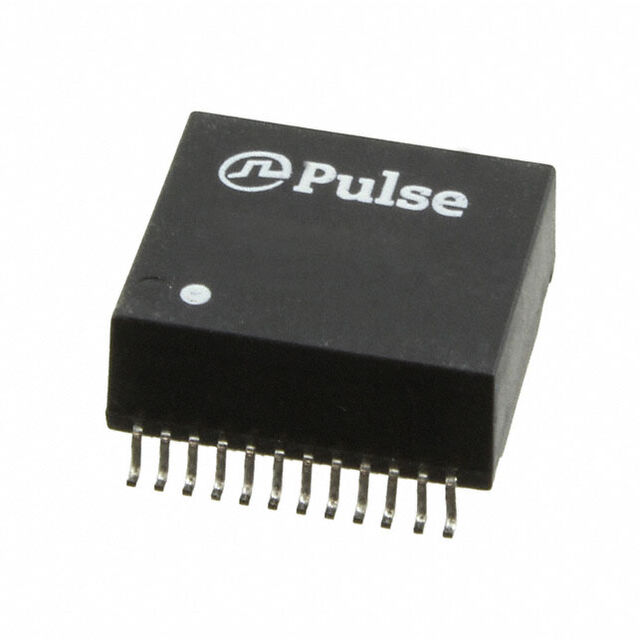

350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HX5181NLT |
|---|---|
| Height - Seated (Max) | 0.25 in |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.545 in |
| Size / Dimension Width | 0.48 in |
| Transformer Type | LAN 10, 1000 Base-T, 100 |
| Turns Ratio - Primary (Receiver) | 1 CT |
| Turns Ratio - Primary (Transmitter) | 1 CT |
| Turns Ratio - Secondary (Receiver) | 1 |
| Turns Ratio - Secondary (Transmitter) | 1 CT |
| Turns Ratio Mode | Receiver, Transmitter |
