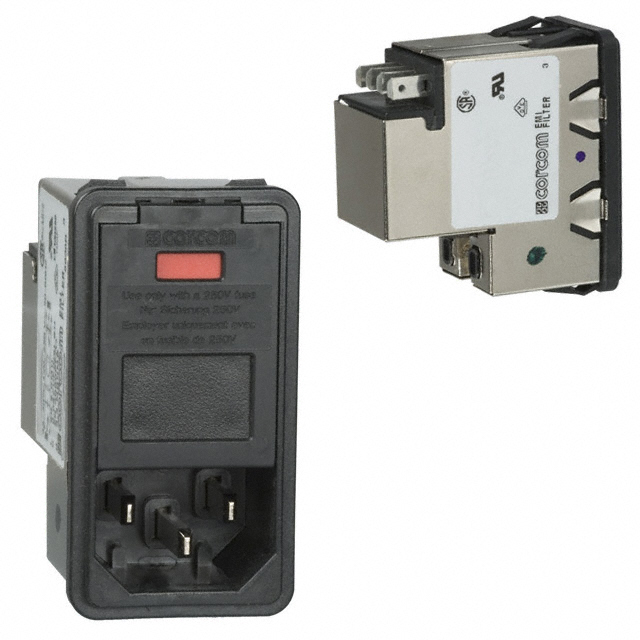

PS000SSXB
ActiveTE Connectivity Corcom Filters
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsCorcom EMI/RFI Filter Selector Chart
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PS000SSXB | PS00 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Applications | - | General Purpose |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Configuration | - | Single Stage |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module, Male Blades, Receptacle |
| Current | - | 3 - 6 A |
| Current Rating - Appliance Inlet | 10 A | 3 - 10 A |
| Current Rating - Filter | 10 A | 3 - 10 A |
| Features | Conversion Clip, Shielded | Conversion Clip, Shielded, Voltage Selector |
| Filter Type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial, Single Phase, DC, Filtered (EMI, RFI) - Commercial, Medical, Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder | Fuse Holder, Fuse Holder, Twin Fused |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Operating Temperature | - | -10 °C |
| Operating Temperature | - | 40 °C |
| Panel Cutout Dimensions | Variable Size | Variable Size |
| Panel Thickness | - | 2 mm |
| Panel Thickness [Max] | 2.9 mm | 2.11 - 2.9 mm |
| Panel Thickness [Max] | 0.114 in | 0.079 - 0.114 in |
| Panel Thickness [Min] | 0.79 mm | 0.79 mm |
| Panel Thickness [Min] | 0.031 " | 0.031 " |
| Termination | 0.187 " | 0.187 " |
| Termination | 4.7 mm | 4.7 mm |
| Termination | Quick Connect | Quick Connect |
| Termination Style | - | Quick Connect |
| Voltage - Rated DC | - | 80 V |
| Voltage Rating - Appliance Inlet | 120 VAC | 120 VAC |
PS00 Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Connector Type | Connector Style | Approval Agency | Accomodates a Fuse | Fuse Holder, Drawer | Filter Type | Current Rating - Filter | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Mounting Type | Current Rating - Appliance Inlet | Features | Panel Cutout Dimensions | Voltage Rating - Appliance Inlet | Termination | Termination | Termination | Termination Style | Current | Voltage - Rated DC | Configuration | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Panel Thickness [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters PS00SSSXA | Receptacle, Male Blades - Module | IEC 320-C14 | CSA, UL, VDE | Fuse Holder | Filtered (EMI, RFI) - Commercial | 10 A | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Panel Mount, Snap-In | 10 A | Conversion Clip, Shielded, Voltage Selector | Variable Size | 120 VAC | 0.187 " | 4.7 mm | Quick Connect | |||||||||
TE Connectivity Corcom Filters PS000SS6B | Receptacle, Male Blades - Module | IEC 320-C14 | CSA, UL, VDE | Fuse Holder | Filtered (EMI, RFI) - Commercial | 6 A | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Panel Mount, Snap-In | 6 A | Conversion Clip, Shielded | Variable Size | 120 VAC | 0.187 " | 4.7 mm | Quick Connect | |||||||||
TE Connectivity Corcom Filters PS000DD3D | CSA, UL, VDE | Single Phase | Quick Connect | 3 A | 80 V | Single Stage | General Purpose | -10 °C | 40 °C | ||||||||||||||||||
TE Connectivity Corcom Filters PS000DD6D | CSA, UL, VDE | DC | Quick Connect | 6 A | 80 V | General Purpose | -10 °C | 40 °C | |||||||||||||||||||
TE Connectivity Corcom Filters PS000DM6E | Male Blades, Receptacle | IEC 320-C14 | CSA, UL, VDE | Fuse Holder, Twin Fused | Filtered (EMI, RFI) - Commercial, Medical | 6 A | 0.079 " | 0.79 mm | 0.031 " | Panel Mount, Snap-In | 6 A | Variable Size | 120 VAC | Quick Connect | 2 mm | ||||||||||||
TE Connectivity Corcom Filters PS00SDH3A | Receptacle, Male Blades - Module | IEC 320-C14 | CSA, UL, VDE | Fuse Holder, Twin Fused | Filtered (EMI, RFI) - Commercial, Medical | 3 A | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Panel Mount, Snap-In | 3 A | Shielded, Voltage Selector | Variable Size | 120 VAC | 0.187 " | 4.7 mm | Quick Connect | |||||||||
TE Connectivity Corcom Filters PS000SH60 | Receptacle, Male Blades - Module | IEC 320-C14 | CSA, UL, VDE | Fuse Holder | Filtered (EMI, RFI) - Commercial, Medical | 6 A | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Panel Mount, Snap-In | 6 A | Conversion Clip | Variable Size | 120 VAC | 0.187 " | 4.7 mm | Quick Connect | |||||||||
TE Connectivity Corcom Filters PS00XSS6B | Receptacle, Male Blades - Module | IEC 320-C14 | CSA, UL, VDE | Fuse Holder | Filtered (EMI, RFI) - Commercial | 6 A | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Panel Mount, Snap-In | 6 A | Conversion Clip, Shielded, Voltage Selector | Variable Size | 120 VAC | 0.187 " | 4.7 mm | Quick Connect | |||||||||
TE Connectivity Corcom Filters PS00SD000 | Receptacle, Male Blades - Module | IEC 320-C14 | CSA, UL, VDE | Fuse Holder, Twin Fused | Unfiltered - Commercial | 2.11 mm | 0.083 " | 0.79 mm | 0.031 " | Panel Mount, Snap-In | 10 A | Voltage Selector | Variable Size | 120 VAC | 0.187 " | 4.7 mm | Quick Connect | ||||||||||
TE Connectivity Corcom Filters PS00XSSX0 | Receptacle, Male Blades - Module | IEC 320-C14 | CSA, UL, VDE | Fuse Holder | Filtered (EMI, RFI) - Commercial | 10 A | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Panel Mount, Snap-In | 10 A | Conversion Clip, Voltage Selector | Variable Size | 120 VAC | 0.187 " | 4.7 mm | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 41.09 | |
| 10 | $ 31.77 | |||
| 25 | $ 28.82 | |||
| 50 | $ 26.82 | |||
| 100 | $ 25.02 | |||
| 250 | $ 22.89 | |||
Description
General part information
PS00 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
