ATCA-01-101M-V

ATCA-01-101M-V

Active
Abracon LLC

POWER INDUCTORS - LEADED IND 100.00 UH 2.000 A 81.00 MOHM

Find alt
ATCA-01-101M-V

ATCA-01-101M-V

Active
Abracon LLC

POWER INDUCTORS - LEADED IND 100.00 UH 2.000 A 81.00 MOHM

Find alt

Description

General part information

ATCA Series

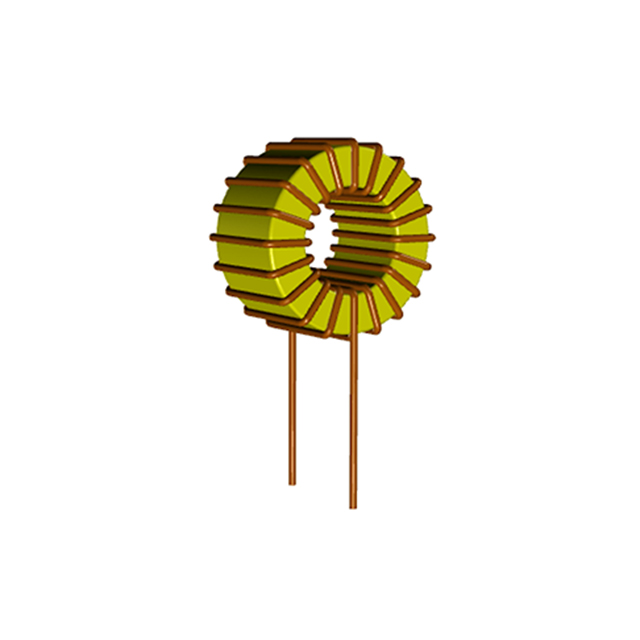

100 µH Unshielded Toroidal Inductor 2 A 81mOhm Max Radial, Vertical (Open)

Technical Specifications

Parameters and characteristics for this part

SpecificationATCA-01-101M-V
Current Rating2 A
DC Resistance (DCR) (Max)81 mOhm
Inductance100 µH
Inductance Frequency - Test1 kHz
Material - CoreIron Powder
Mounting TypeThrough Hole
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Package / CaseRadial, Vertical (Open)
ShieldingUnshielded
Size / Dimension Length0.709 in
Size / Dimension Width0.453 in
Tolerance20 %
TypeToroidal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
