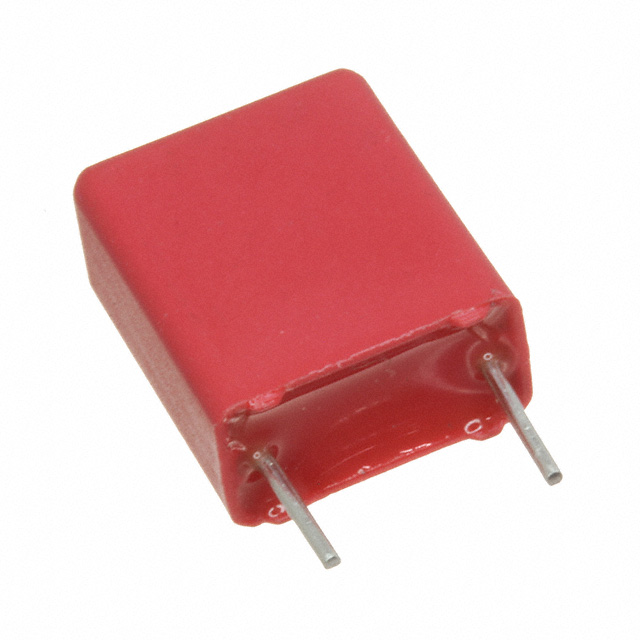

MKP4G026802F00KSSD
0.068 µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MKP4G026802F00KSSD |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 0.068 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.492 in |
| Lead Spacing | 0.295 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.406 in |
| Size / Dimension Width | 0.224 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 220 V |
| Voltage Rating - DC | 400 V |
