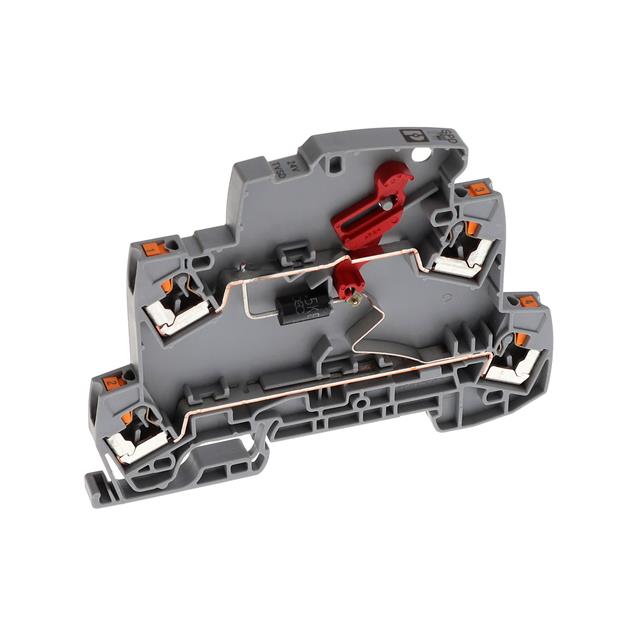

2906851
ActivePhoenix Contact
SPD 21VAC/30VDC MCOV 1 POLE
2906851
ActivePhoenix Contact
SPD 21VAC/30VDC MCOV 1 POLE
Description
General part information
2906851
SPD 21VAC/30VDC MCOV 1 POLE
Technical Specifications
Parameters and characteristics for this part
| Specification | 2906851 |
|---|---|
| Approval Agency | cCSAus, CSAus, UL, CSA |
| Current - Discharge (Nom) | 150 A |
| Form | Module Only |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Voltage - Continuous Operating (Max) (MCOV) AC | 21 VAC |
| Voltage - Continuous Operating (Max) (MCOV) DC | 30 VDC |
| Voltage - Protection Level (VP) (2416) | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
