FMWAN062-10SM
ActiveFairview Microwave
WG ANTENNA WG COAX ADAPT WR-62-
FMWAN062-10SM
ActiveFairview Microwave
WG ANTENNA WG COAX ADAPT WR-62-
Description
General part information
FMWAN062-10SM

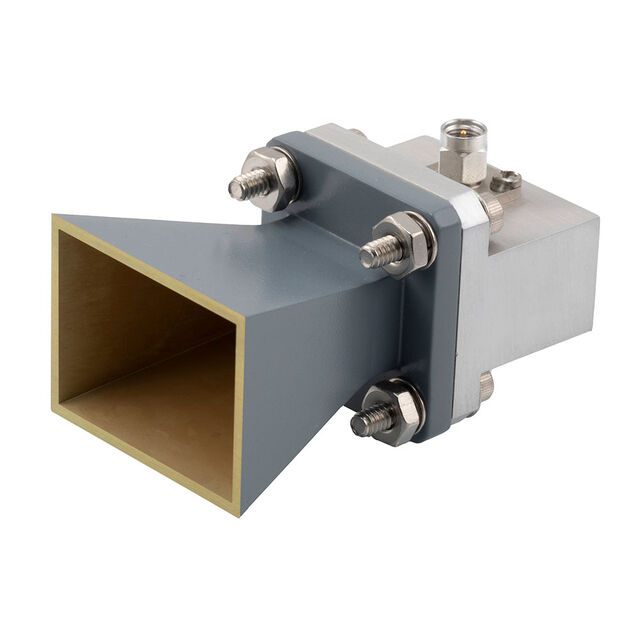

RF ANTENNA General Purpose Horn SMA Male Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWAN062-10SM |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 15.2 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 18 GHz |
| Frequency Range (Min) | 12.4 GHz |
| Gain | 10 dBi |
| Height (Max) | 0.768 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination Type | SMA Male |
| VSWR | 1.2 |
