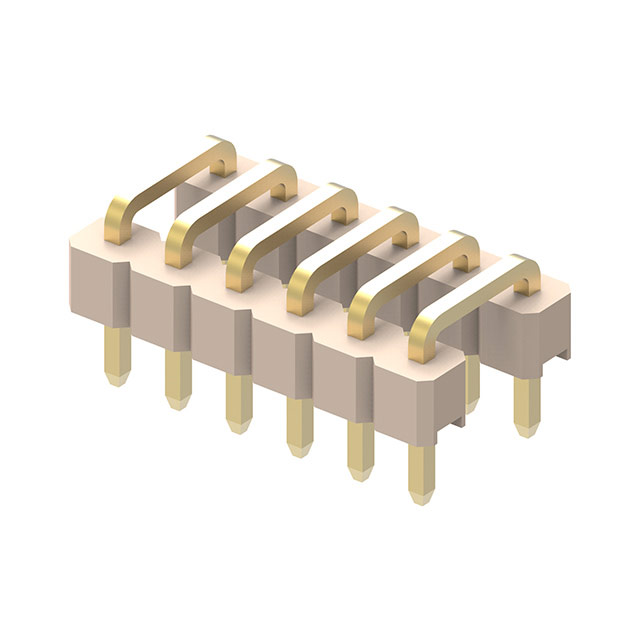

BG305-06-A-0500-L-D

Active

GCT

6W, 2.54MM PTH HDR,U SHAPED,DUAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BG305-06-A-0500-L-D

Active

GCT

6W, 2.54MM PTH HDR,U SHAPED,DUAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1026	$ 0.30

Description

General part information

BG305 Series

Connector Header Through Hole 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BG305-06-A-0500-L-D	BG305 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	3 mm	3 mm
Contact Length - Mating	0.118 in	0.118 in
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Natural	Natural
Insulation Height [z]	0.098 in	0.098 in
Insulation Height [z]	2.5 mm	2.5 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	6	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder

BG305 Series

4W, 2.54MM PTH HDR,U SHAPED,DUAL

Part	Contact Shape	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Type	Contact Material	Contact Finish - Post	Connector Type	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Termination	Shrouding	Number of Rows	Fastening Type	Mounting Type	Contact Finish - Mating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Finish Thickness - Mating
GCT BG305-04-A-0500-L-D	Square	3 A	0.1 in	2.54 mm	0.098 in	2.5 mm	-40 °C	105 ░C	UL94 V-0	Male Pin	Brass	Gold	Header	Flash	All	0.118 in	3 mm	Solder	Unshrouded	1	Push-Pull	Through Hole	Gold	Natural	3 mm	0.118 in	4	Flash
GCT BG305-03-A-0500-L-D	Square	3 A	0.1 in	2.54 mm	0.098 in	2.5 mm	-40 °C	105 ░C	UL94 V-0	Male Pin	Brass	Gold	Header	Flash	All	0.118 in	3 mm	Solder	Unshrouded	1	Push-Pull	Through Hole	Gold	Natural	3 mm	0.118 in		Flash
GCT BG305-06-A-0500-L-D	Square	3 A	0.1 in	2.54 mm	0.098 in	2.5 mm	-40 °C	105 ░C	UL94 V-0	Male Pin	Brass	Gold	Header	Flash	All	0.118 in	3 mm	Solder	Unshrouded	1	Push-Pull	Through Hole	Gold	Natural	3 mm	0.118 in	6	Flash
GCT BG305-05-A-0500-L-D	Square	3 A	0.1 in	2.54 mm	0.098 in	2.5 mm	-40 °C	105 ░C	UL94 V-0	Male Pin	Brass	Gold	Header	Flash	All	0.118 in	3 mm	Solder	Unshrouded	1	Push-Pull	Through Hole	Gold	Natural	3 mm	0.118 in		Flash
GCT BG305-02-A-0500-L-G	Square	3 A	0.1 in	2.54 mm	0.098 in	2.5 mm	-40 °C	105 ░C	UL94 V-0	Male Pin	Brass	Gold	Header	Flash	All	0.118 in	3 mm	Solder	Unshrouded	1	Push-Pull	Through Hole	Gold	Natural	3 mm	0.118 in	2	Flash
