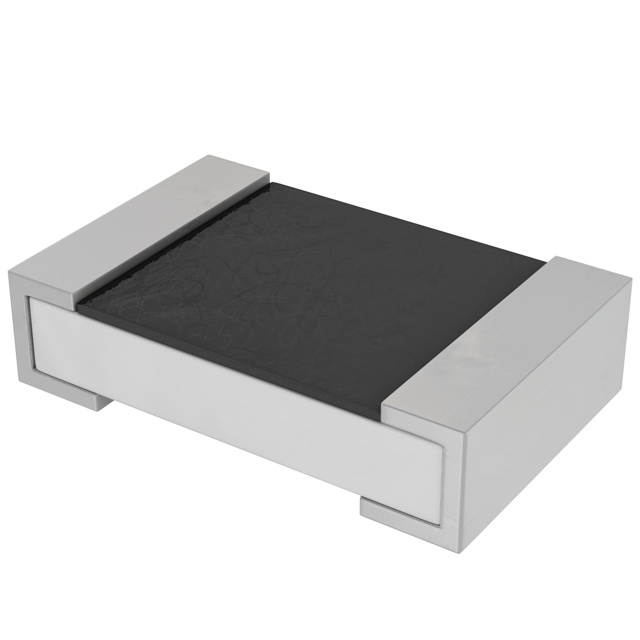

PE0805DRF470R04L

Active

YAGEO

RES 0.04 OHM 0.5% 1/2W 0805

Search across all available documentation for this part.

Active

YAGEO

RES 0.04 OHM 0.5% 1/2W 0805

Technical Specifications

Parameters and characteristics for this part

Specification	PE0805DRF470R04L

Composition	Metal Film
Features	Automotive AEC-Q200, Current Sense
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Ratings	AEC-Q200
Size / Dimension [x]	2.03 mm
Size / Dimension [x]	0.08 "
Size / Dimension [y]	0.05 "
Size / Dimension [y]	1.27 mm
Supplier Device Package	0805
Temperature Coefficient	100 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.40

General part information

40 mOhms ±0.5% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Current Sense Metal Film
