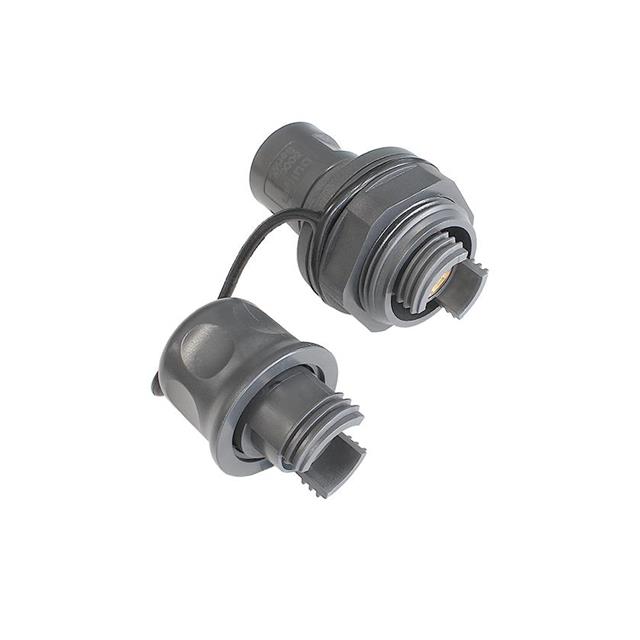

PXEB5210MM5560
ActiveFIBER OPTIC CONNECTOR, 2CH, OM1/OM3, RECEPTACLE, MULTIMODE, 50ΜM / 125ΜM, 62.5ΜM / 125ΜM

PXEB5210MM5560
ActiveFIBER OPTIC CONNECTOR, 2CH, OM1/OM3, RECEPTACLE, MULTIMODE, 50ΜM / 125ΜM, 62.5ΜM / 125ΜM
Description
General part information
PXEB5210MM5560
5000 series expanded beam connector range provides a high performance and a simple termination process. This allows for a rapid in-field termination and repair where inserts and termination kits are available. Moreover, the newly designed cable management system prevents fibers and cable to be twisted and their corresponding performance loss. The maximum insertion loss is <lt/>2dB and average insertion loss is <lt/>1.5dB. All plastic body version; UL94-V0 rated, UV stable, halogen free, light-weight, self-extinguishing material suitable for long-term outdoor and defense use.
Technical Specifications
Parameters and characteristics for this part
| Specification | PXEB5210MM5560 |
|---|---|
| Body Material | Nylon, PA, Polyamide |
| Cable Diameter (Maximum) | 6 mm |
| Cable Diameter (Minimum) | 5.5 mm |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Features | Dust Cap |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter (Max) | 62.5 µm |
| Fiber Core Diameter (Min) | 50 µm |
| Housing Color | Black |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mode | Multimode OM1, OM3 |
| Mounting Type | Bulkhead, Panel Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -50 °C |
| Simplex/Duplex | Duplex |
