153204-2000-RB

Active

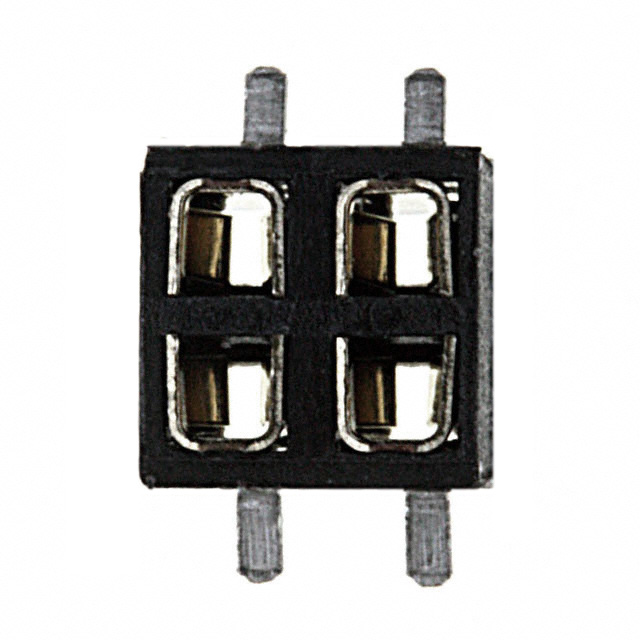

CONN RCPT 4POS 0.079 GOLD SMD

Search across all available documentation for this part.

Active

CONN RCPT 4POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	153204-2000-RB	153204 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Pick and Place
Insulation Color	Black	Black
Insulation Height	0.129 in	0.129 in
Insulation Height	3.28 mm	3.28 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

CONN RCPT 4POS 0.079 GOLD SMD

Part	Contact Finish - Post	Number of Positions	Termination	Contact Material	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Fastening Type	Features	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Rows	Material Flammability Rating	Connector Type	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Contact Finish - Mating	Voltage Rating
3M 153204-2000-RB-WA	Tin	4	Solder	Copper Alloy	Square	0.079 in	2 mm	Female Socket	Push-Pull	Pick and Place	Board to Board, Cable	30 Áin	0.76 Ám	0.129 in	3.28 mm	105 ░C	-55 °C	Surface Mount	2	UL94 V-0	Receptacle, Bottom or Top Entry	Black	0.079 in	2 mm	All	Gold	500 V
3M 153204-2000-RB	Tin	4	Solder	Copper Alloy	Square	0.079 in	2 mm	Female Socket	Push-Pull		Board to Board, Cable	30 Áin	0.76 Ám	0.129 in	3.28 mm	105 ░C	-55 °C	Surface Mount	2	UL94 V-0	Receptacle, Bottom or Top Entry	Black	0.079 in	2 mm	All	Gold	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
