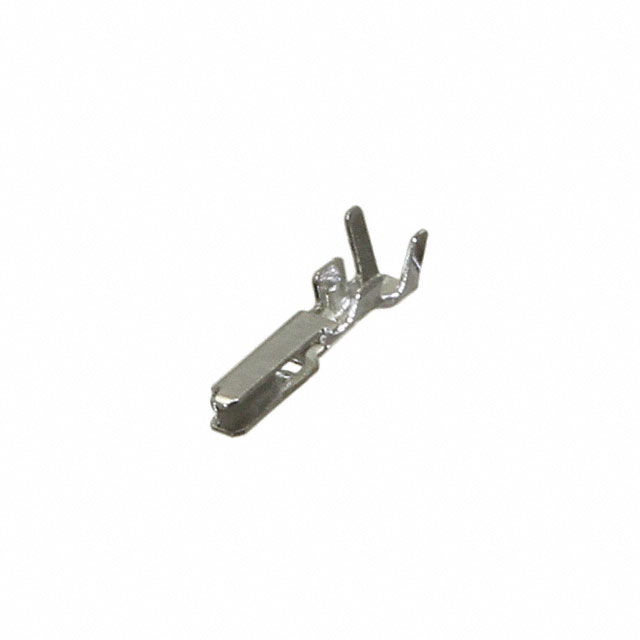

10135176-001LF
ActiveAmphenol ICC (FCI)
CONN PIN 24-28AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
10135176-001LF
ActiveAmphenol ICC (FCI)
CONN PIN 24-28AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10135176-001LF |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.06 | |||
| 25 | $ 0.06 | |||
| 50 | $ 0.05 | |||
| 100 | $ 0.05 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| 2500 | $ 0.03 | |||
| Tape & Reel (TR) | 15000 | $ 0.03 | ||
| 30000 | $ 0.03 | |||
| 45000 | $ 0.02 | |||
| 75000 | $ 0.02 | |||
| 105000 | $ 0.02 | |||
| 150000 | $ 0.02 | |||
| 375000 | $ 0.02 | |||
Description
General part information
10135176 Series
Pin Contact Tin 24-28 AWG Crimp Stamped
