10-08-A-0177-C-4-08-4-T
ActiveGCT
FFC TAPE; CORES: 8; TAPE PH: 1MM; L: 177MM; 1A; 60V; PLATING: TINNED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-08-A-0177-C-4-08-4-T
ActiveGCT
FFC TAPE; CORES: 8; TAPE PH: 1MM; L: 177MM; 1A; 60V; PLATING: TINNED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10-08-A-0177-C-4-08-4-T |
|---|---|
| Cable Type | FPC, FFC |
| Length | 177 mm |
| Length - Exposed Ends [x] | 4 mm |
| Length - Exposed Ends [x] | 0.157 in |
| Length [x] | 6.969 in |
| Number of Conductors | 8 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination Style | Backers on Both Sides, Top on Both Sides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1000 | $ 0.47 | |
Description
General part information
10-08-A-0177-C-4-08-4-T

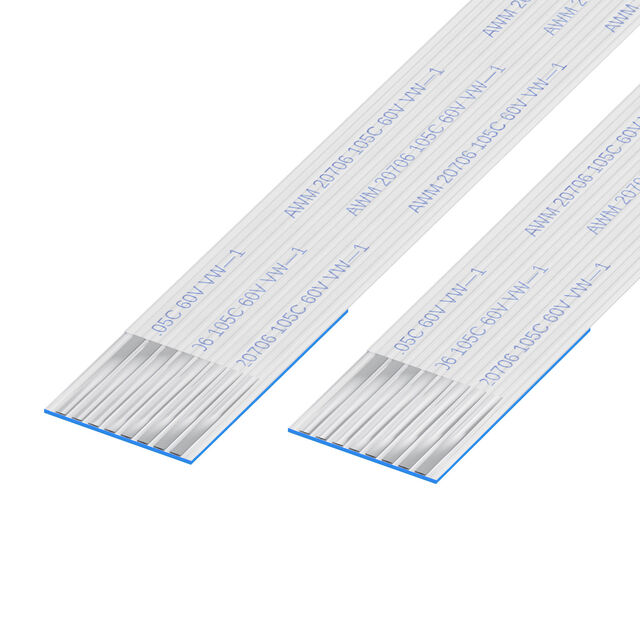

8 Position FFC, FPC Cable 0.039" (1.00mm) 6.969" (177.00mm)
