1896/7C SL002

Active

ALPHA WIRE

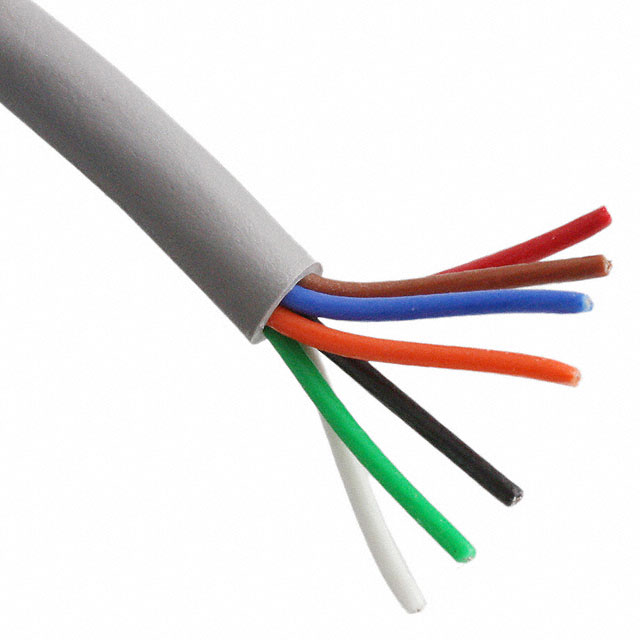

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 7 CONDUCTOR, 20 AWG, 0.51 MM², 500 FT, 152.4 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 7 CONDUCTOR, 20 AWG, 0.51 MM², 500 FT, 152.4 M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1896/7C SL002	1896/7C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Jacket (Insulation) Diameter [diameter]	0.251 in	0.251 in
Jacket (Insulation) Diameter [diameter]	6.38 mm	6.38 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	100 - 500 ft
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	7	7
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

CABLE 7COND 20AWG SLATE 100'

Part	Wire Gauge	Jacket (Insulation) Material	Voltage	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length [x]	Length [x]	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Cable Type	Conductor Insulation	Length	Length
ALPHA WIRE 1896/7C SL005	20 AWG	Poly-Vinyl Chloride (PVC)	300 V	Communication, Control	0.251 in	6.38 mm	Slate	30.5 m	100 ft	7	28	7	-20 C	80 C	0.02 in	0.508 mm	Copper, Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1896/7C SL002	20 AWG	Poly-Vinyl Chloride (PVC)	300 V	Communication, Control	0.251 in	6.38 mm	Slate	152.4 m	500 '	7	28	7	-20 C	80 C	0.02 in	0.508 mm	Copper, Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1896/7C SL001	20 AWG	Poly-Vinyl Chloride (PVC)	300 V	Communication, Control	0.251 in	6.38 mm	Slate			7	28	7	-20 C	80 C	0.02 in	0.508 mm	Copper, Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 615.40
Newark	Spool of 500	1	$ 799.85

General part information

7 Conductor Multi-Conductor Cable Slate 20 AWG 500.0' (152.4m)
