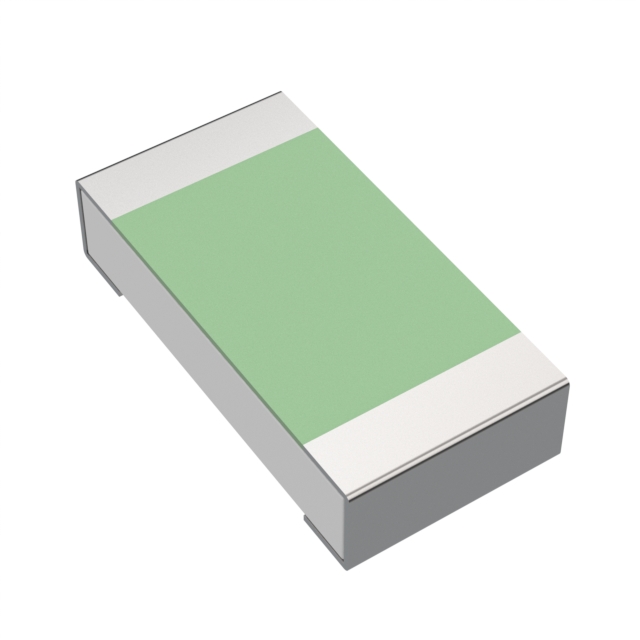

TNPW080551K7BETA

Active

Vishay Dale

RES 51.7K OHM 0.1% 1/8W 0805

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TNPW080551K7BETA

Active

Vishay Dale

RES 51.7K OHM 0.1% 1/8W 0805

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TNPW080551K7BETA	TNPW0805 Series

Composition	Thin Film	Thin Film
Features	Military	Military, Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max) [Max] [z]	0.022 in	0.022 in
Height - Seated (Max) [Max] [z]	0.55 mm	0.55 mm
Number of Terminations	2	2
Operating Temperature [Max]	125 °C	125 - 347 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0805	0805
Power (Watts)	0.125 W	0.125 W
Power (Watts)	0.125 W	0.125 W
Power (Watts)	-	0.26 W
Ratings	AEC-Q200	AEC-Q200
Resistance	51.7 kOhms	1 - 750000 Ohms
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	0.049 in	0.049 in
Size / Dimension [y]	1.25 mm	1.25 mm
Supplier Device Package	0805	0805
Temperature Coefficient	25 ppm/°C	10 - 50 ppm/°C
Tolerance	0.1 %	0.1 - 1 %

TNPW0805 Series

RES 412 OHM 0.1% 1/8W 0805

...

Part	Number of Terminations	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Composition	Power (Watts)	Power (Watts)	Features	Supplier Device Package	Tolerance	Resistance	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Ratings
Vishay Dale TNPW0805412RBETY	2	-55 °C	125 °C	25 ppm/°C	0.022 in	0.55 mm	Thin Film	0.125 W	0.125 W	Military	0805	0.1 %	412 Ohms	0805	2 mm	0.079 in	0.049 in	1.25 mm
Vishay Dale TNPW080543K0BYEA	2	-55 °C	347 °F	10 ppm/°C	0.022 in	0.55 mm	Thin Film			Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant	0805	0.1 %	43 kOhms	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.26 W	AEC-Q200
Vishay Dale TNPW080556R0BEEA	2	-55 °C	347 °F	25 ppm/°C	0.022 in	0.55 mm	Thin Film			Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant	0805	0.1 %	56 Ohms	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.26 W	AEC-Q200
Vishay Dale TNPW0805105KBYEA	2	-55 °C	347 °F	10 ppm/°C	0.022 in	0.55 mm	Thin Film			Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant	0805	0.1 %	105 kOhms	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.26 W	AEC-Q200
Vishay Dale TNPW08051K62BEEN	2	-55 °C	347 °F	25 ppm/°C	0.022 in	0.55 mm	Thin Film			Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant	0805	0.1 %	1.62 kOhms	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.26 W	AEC-Q200
Vishay Dale TNPW0805324KBHEA	2	-55 °C	347 °F	50 ppm/°C	0.022 in	0.55 mm	Thin Film			Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant	0805	0.1 %		0805	2 mm	0.079 in	0.049 in	1.25 mm	0.26 W	AEC-Q200
Vishay Dale TNPW08053K65DETA	2	-55 °C	125 °C	25 ppm/°C	0.022 in	0.55 mm	Thin Film	0.125 W	0.125 W	Military	0805		3.65 kOhms	0805	2 mm	0.079 in	0.049 in	1.25 mm		AEC-Q200
Vishay Dale TNPW08052K34BETY	2	-55 °C	125 °C	25 ppm/°C	0.022 in	0.55 mm	Thin Film	0.125 W	0.125 W	Military	0805	0.1 %	2.34 kOhms	0805	2 mm	0.079 in	0.049 in	1.25 mm
Vishay Dale TNPW08051K76BEEN	2	-55 °C	347 °F	25 ppm/°C	0.022 in	0.55 mm	Thin Film			Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant	0805	0.1 %	1.76 kOhms	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.26 W	AEC-Q200
Vishay Dale TNPW080513R0DETA	2	-55 °C	125 °C	25 ppm/°C	0.022 in	0.55 mm	Thin Film	0.125 W	0.125 W	Military	0805		13 Ohms	0805	2 mm	0.079 in	0.049 in	1.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.32

Description

General part information

TNPW0805 Series

51.7 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Military Thin Film
