086-3SBSM+

Active

MINI-CIRCUITS

CBL ASSY SMA JACK TO PLUG 3"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA JACK TO PLUG 3"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

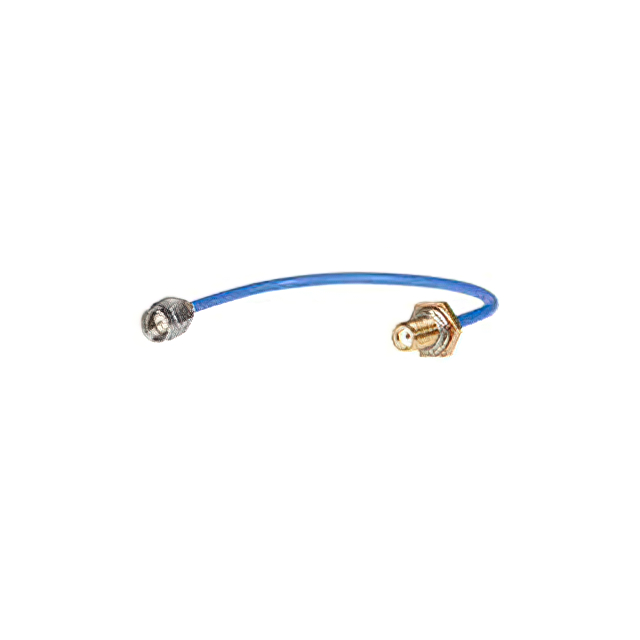

Cable Assembly Coaxial SMA to SMA Hand Formable .086 3.000" (76.20mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	086-3SBSM+	086-3 Series

1st Connector	SMA Jack	SMA Plug, Right Angle, 2.92mm Plug, SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Free Hanging (In-Line), Panel Mount
1st Contact Gender	Female	Male, Female
2nd Connector	SMA Plug	SMA Plug, Right Angle, SMA Plug
2nd Connector	-	2.92 mm
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	Hand Formable	Hand Formable
Cable Type	0.086	0.086
Color	Blue	Blue
Frequency - Max [Max]	18 GHz	18 - 40 GHz
Length	3 in	3 in
Length	76.2 mm	76.2 mm
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	SMA to SMA	SMA to SMA
Style	-	2.92 mm
Style	-	2.92 mm

CBL ASSY SMA PLUG TO PLUG 3"

Part	Length	Length	1st Connector	Style	1st Connector Mounting Type	2nd Connector	Color	Cable Type	Cable Type	2nd Contact Gender	Overall Impedance	1st Contact Gender	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector Mounting Type	Frequency - Max [Max]	Style [Min]	Style [Max]	2nd Connector	1st Connector Mounting Feature
MINI-CIRCUITS 086-3SMRC+	3 in	76.2 mm	Right Angle, SMA Plug	SMA to SMA	Free Hanging (In-Line)	SMA Plug, Right Angle	Blue	Hand Formable	0.086	Male	50 Ohms	Male	105 ░C	-55 °C	Free Hanging (In-Line)	18 GHz
MINI-CIRCUITS 086-3KM+	3 in	76.2 mm	2.92mm Plug		Free Hanging (In-Line)		Blue	Hand Formable	0.086	Male	50 Ohms	Male	85 °C	-55 °C	Free Hanging (In-Line)	40 GHz	2.92 mm	2.92 mm	2.92 mm
MINI-CIRCUITS 086-3SBSM+	3 in	76.2 mm	SMA Jack	SMA to SMA	Panel Mount	SMA Plug	Blue	Hand Formable	0.086	Male	50 Ohms	Female	105 ░C	-55 °C	Free Hanging (In-Line)	18 GHz				Bulkhead - Front Side Nut
MINI-CIRCUITS 086-3SMR+	3 in	76.2 mm	Right Angle, SMA Plug	SMA to SMA	Free Hanging (In-Line)	SMA Plug, Right Angle	Blue	Hand Formable	0.086	Male	50 Ohms	Male	105 ░C	-55 °C	Free Hanging (In-Line)	18 GHz
