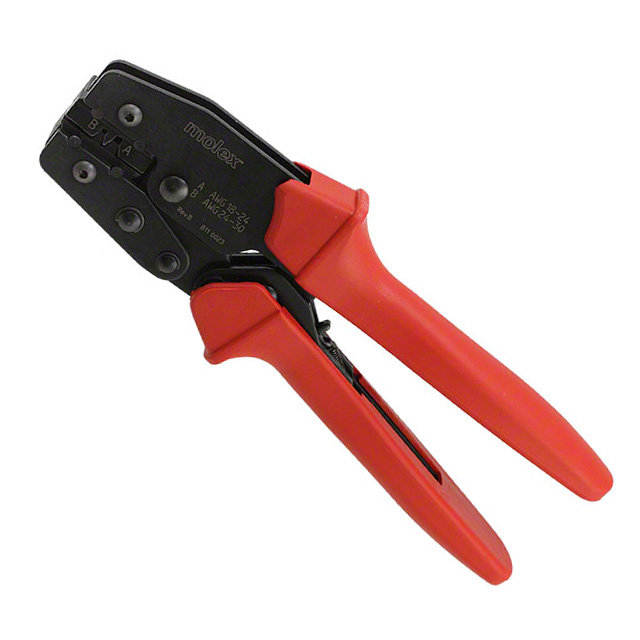

Specification	0638116600

For Use With/Related Products	Rectangular Contacts
Ratcheting	Ratchet
Tool Method	Manual
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG (Max)	30 AWG
Wire Gauge or Range - AWG (Min)	18 AWG

063811 Series

Extraction, Removal & Insertion Tools INSERTION TOOL SL SERIES

...

Part	Wire Entry Location	For Use With/Related Products	Ratcheting	Tool Method	Tool Type	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)
Molex 0638278475
Molex 0638276175
Molex 0638276400	Side Entry	505153-8000	Ratchet	Manual	Hand Crimper
Molex 0638278900	Side Entry	Terminals	Ratchet	Manual	Hand Crimper	25.5 AWG	22 AWG
Molex 638277500	Side Entry	505073-0100 505073-1100	Ratchet	Manual	Hand Crimper
Molex 0638274200	Side Entry	Blade Type Contacts	Ratchet	Manual	Hand Crimper	20 AWG	18 AWG
Molex 0638274400	Side Entry	Blade Type Contacts	Ratchet	Manual	Hand Crimper	20 AWG	18 AWG
Molex 0638275775
Molex 0638276075
Molex 0638277975
