Specification	0387700103

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Color	Black
Current Rating	15 A
Features	Flange
Material - Insulation	PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel
Number of Circuits	3
Number of Rows	2
Number of Wire Entries	6
Pitch	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Clear Chromate, Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VAC/DC
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	14 AWG

038770 Series

Part	Mounting Type	Material Flammability Rating	Material - Insulation	Number of Wire Entries	Terminal Block Type	Voltage Rating	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Top Termination	Number of Rows	Current Rating	Barrier Type	Bottom Termination	Features	Color	Pitch	Number of Circuits	Terminal Screw Material	Terminal Screw Finish	Operating Temperature (Min)	Operating Temperature (Max)	Operating Temperature
Molex 0387700414	Chassis Panel	UL94 V-0	PBT Polybutylene Terephthalate	28	Barrier Block	300 VAC/DC	14 AWG	22 AWG	Screws (Not Included)	2	15 A	2 Wall (Dual)	Closed	Flange	Black	0.375 in	14
Molex 0387700101	Chassis Panel	UL94 V-0	PBT Polybutylene Terephthalate Polyester	2	Barrier Block	300 VAC/DC	14 AWG	22 AWG	Screws	2	15 A	2 Wall (Dual)	Closed	Flange	Black		1	Steel	Clear Chromate Zinc	-40 °C	110 °C
Molex 0387700121	Chassis Panel	UL94 V-0	PBT Polybutylene Terephthalate	42	Barrier Block	300 VAC/DC	14 AWG	22 AWG	Screws	2	15 A	2 Wall (Dual)	Closed	Flange	Black	0.375 in	21	Steel	Clear Chromate Zinc
Molex 0387700410	Chassis Panel	UL94 V-0	PBT Polybutylene Terephthalate	20	Barrier Block	300 VAC/DC	14 AWG	22 AWG	Screws (Not Included)	2	15 A	2 Wall (Dual)	Closed	Flange	Black	0.375 in	10
Molex 0387700511	Chassis Panel	UL94 V-0	Thermoplastic	22	Barrier Block	300 VAC/DC	14 AWG	24 AWG	Screws	2	20 A	2 Wall (Dual)	Closed	Flange Positions Stamped	Black	0.375 in	11	Steel	Chromate Zinc			110 °C
Molex 0387700208	Chassis Panel	UL94 V-0	PBT Polybutylene Terephthalate	16	Barrier Block	300 VAC/DC	14 AWG	22 AWG	Screws	2	15 A	2 Wall (Dual)	Closed	Flange	Black	0.375 in	8	Brass	Nickel
Molex 0387700604	Chassis Panel	UL94 V-0	PBT Polybutylene Terephthalate	8	Barrier Block	300 VAC/DC	14 AWG	22 AWG	Screws (One Row Not Included)	2	15 A	2 Wall (Dual)	Closed	Flange	Black	0.375 in	4	Steel	Clear Chromate Zinc
Molex 0387700305	Chassis Panel	UL94 V-0	PBT Polybutylene Terephthalate	10	Barrier Block	300 VAC/DC	14 AWG	22 AWG	Screws with Captive Plate	2	15 A	2 Wall (Dual)	Closed	Flange	Black	0.375 in	5	Steel	Clear Chromate Zinc

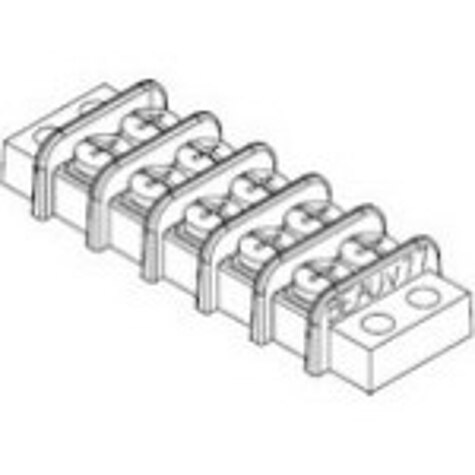

Molex 0387700112	Chassis Panel	UL94 V-0	PBT Polybutylene Terephthalate	24	Barrier Block	300 VAC/DC	14 AWG	22 AWG	Screws	2	15 A	2 Wall (Dual)	Closed	Flange	Black	0.375 in	12	Steel	Clear Chromate Zinc
Molex 0387700118	Chassis Panel	UL94 V-0	PBT Polybutylene Terephthalate	36	Barrier Block	300 VAC/DC	14 AWG	22 AWG	Screws	2	15 A	2 Wall (Dual)	Closed	Flange	Black	0.375 in	18	Steel	Clear Chromate Zinc

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0387700103 | Datasheet
